maXpeedingrods VZ21 RHB31 Turbo

Updated May 8, 2026

Confirm the application falls within the 500-600cc / under-100-HP envelope and that the buyer is committed to disassembling-and-inspecting on arrival before clicking through, or Check Price on Amazon now.

Small-Engine Lane: 500-600cc

maXpeedingrods' VZ21 RHB31 closes Cluster D at the small-engine sub-niche. Different application envelope than every other Cluster D frame.

Cluster D opened with the Autodevil and maXpeedingrods T3/T4 T04E frames covering 1.5L-2.5L / up-to-400-HP builds, then stepped up to the Autodevil GT45 T4 big-frame for 4.0L-6.0L / 600+ HP. The VZ21 RHB31 lane sits at the opposite end of the spectrum — 500-600cc displacement, 100 HP target. The published application envelope: Fit for Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm 100HP. The OE source for the VZ21 frame is the IHI RHB31 / RHB32 family — originally engineered for the Suzuki Cappuccino F6A engine (660cc Kei-class sports car, 1991-1998) and the Daihatsu Charade. Switching from a 4-cylinder T04E sizing mindset to a 500cc snowmobile sizing mindset, the first thing that stands out is the displacement envelope is roughly an order of magnitude smaller than every other Cluster D listing.

Six-Number VZ21 OE Cross-Reference

maXpeedingrods publishes a six-stamp OE cross-reference. Stamp match against the existing failed turbo's casting confirms fitment.

The published OE chain: VZ21, 13900-62D51, 1390062D51, 1390062D50, 13900-62D50, VE110069. The VZ21 designation is the Suzuki internal frame name. The 13900-62D51 / 13900-62D50 prefixes are the Suzuki service-part numbers (with and without hyphenation), covering the F6A engine production run. The VE110069 is an alternate stamp variant. A buyer photographing their existing failed turbo's casting should see one of these six prefixes; a match confirms fitment on the IHI RHB31 frame. For non-Suzuki applications (Kubota diesel, snowmobile, motorcycle), the stamp-match check does not apply — the buyer is fabricating a flange-adapter install rather than a direct OE replacement.

Same Material Spec as T3/T4 T04E

maXpeedingrods publishes the same material spec block across the VZ21 RHB31 and the larger T3/T4 T04E listing. Same housing, same wheel, same bearing material claims.

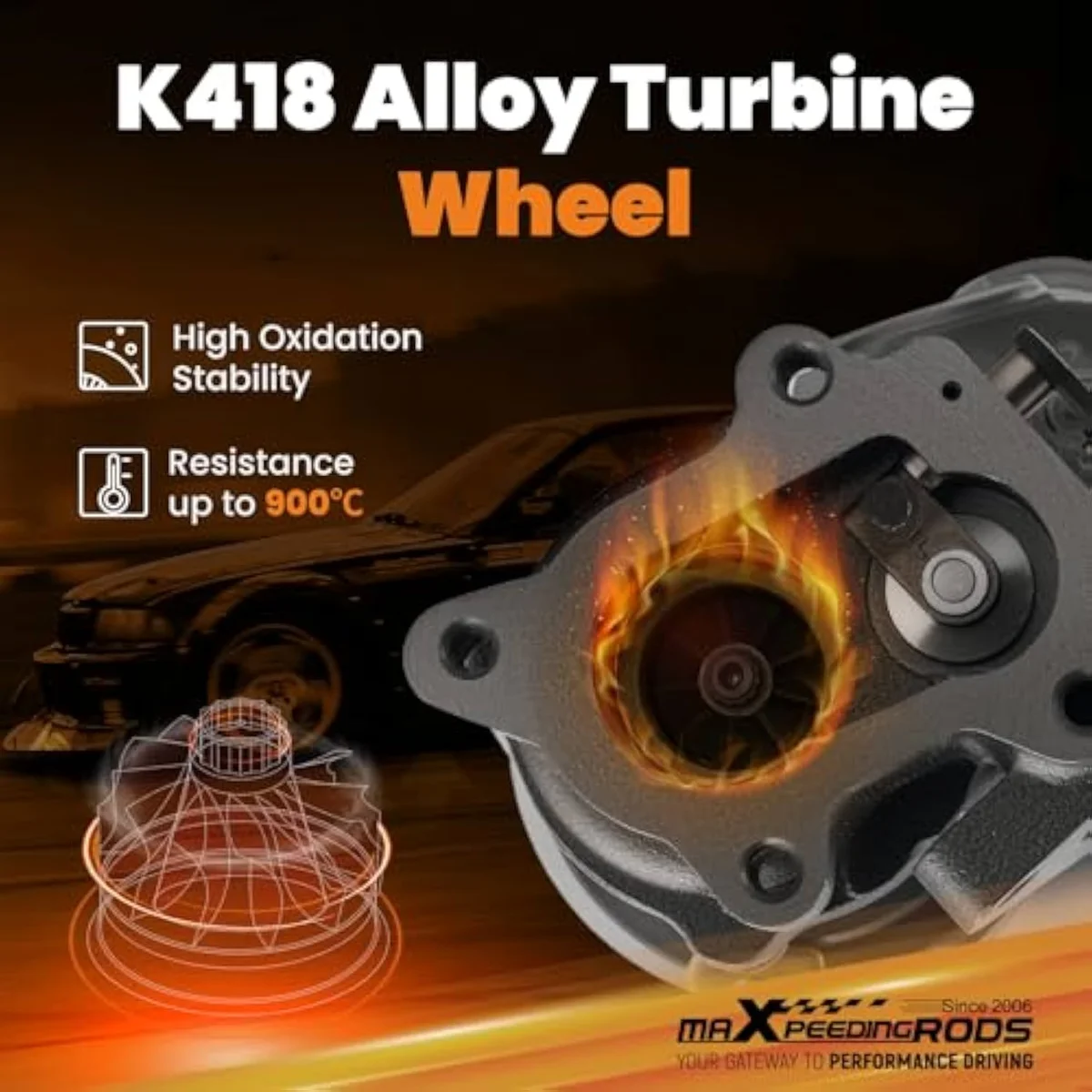

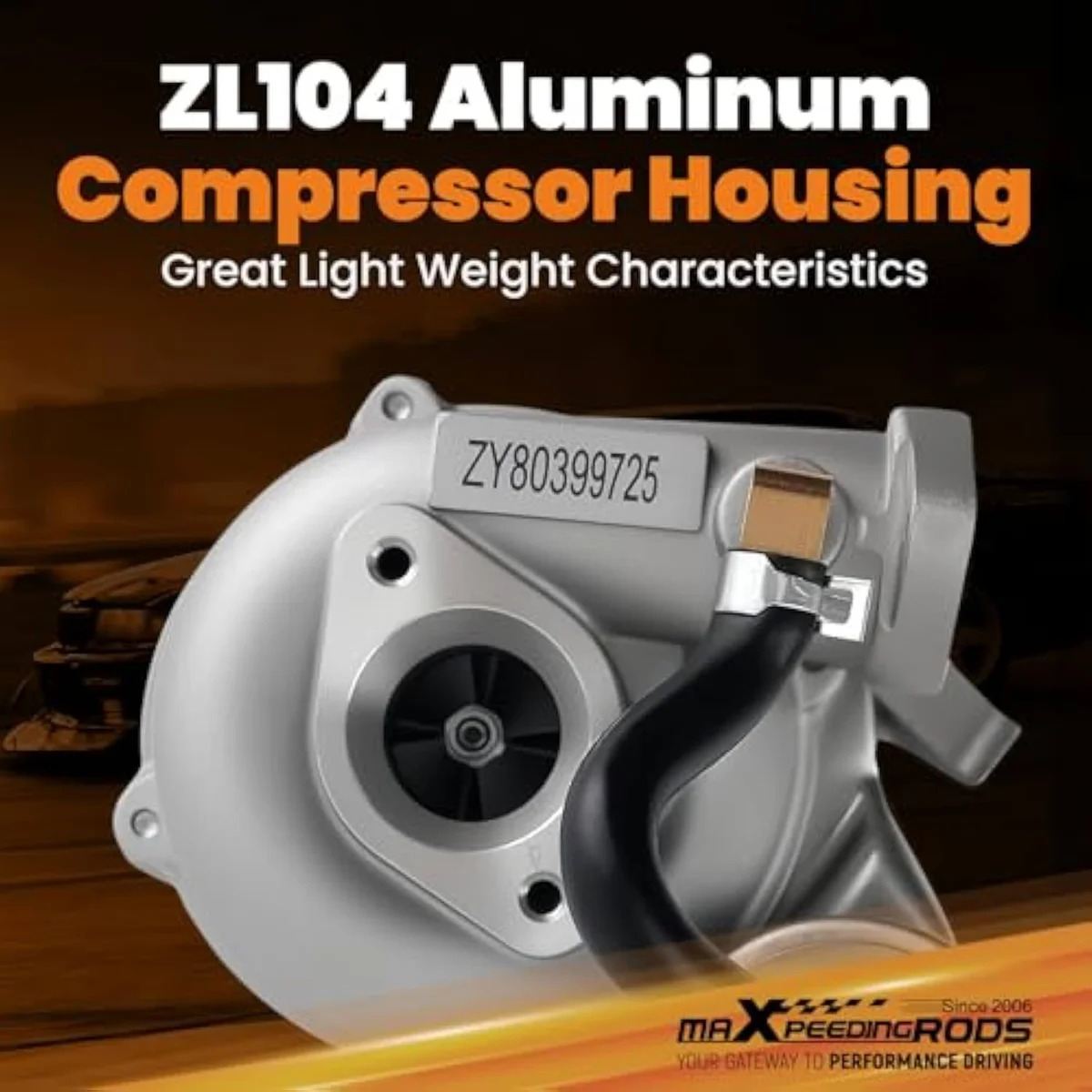

The shared material spec: The turbine housing made of ductile iron is resistant to high temperatures of 1292°F, alloy turbine wheel has high oxidation stability and can operate well at 1652°F, Crafted from premium forged aluminum alloy, featuring an aerodynamic design that improves airflow and compression efficiency, and The journal bearing is made of copper alloy, which is resistant to high temperature and wear. The four claims match the T3/T4 T04E listing verbatim — same ductile iron housing, same Inconel-style alloy turbine wheel, same forged aluminum compressor wheel, same copper-alloy journal bearing. Whether the material claims hold up across the smaller frame is the question the verified-buyer pool answers, not the marketing-copy block.

Documented Catastrophic-Failure Reports

The verified-buyer pool and Reddit community archives include explicit catastrophic-failure reports. Honest editorial requires surfacing them at the top of the editorial frame, not buried.

The Amazon verified-buyer report on shaft-play failure: the shaft had so much play in it that the impeller hit the housing and destroyed the turbo. After about 15 minutes of run time on a fresh install, the bearing cartridge produced enough shaft play to let the compressor wheel impact the housing and destroy the unit. The r/mazdaspeed3 community report on a different chassis with a maXpeedingrods turbo: It blew up after less than 12 hours. Under twelve hours of total operating time, catastrophic failure. The Mazdaspeed3 community's response to the failure pattern is direct: Those are the only 3 brands the community recommends — BNR, Corksport, and Garrett, with maXpeedingrods explicitly excluded from the daily-driver Mazdaspeed3 platform recommendation list.

Successful Long-Term Install Reports

The verified-buyer pool and Reddit community archives also include long-term success reports. Honest editorial requires presenting both sides.

The Kubota application success: put one on my 600cc Kubota diesel and bought the flange kit. After 14 days of post-install observation on a 600cc Kubota diesel application, a verified-buyer report confirms the physical compatibility of the VZ21 RHB31 frame plus the fabrication-side flange kit. The first-time install mistake on the Kubota application is skipping the flange-kit purchase and trying to dry-fit the universal turbo to the Kubota OE manifold — they will not mate without an adapter. The Mazdaspeed3 community long-term counterpoint to the 12-hour failure: havent had any issues for months +15,000 miles on it. 15,000+ trouble-free miles on a Mazdaspeed3 with the same maXpeedingrods turbo family demonstrates the wide variance in QC outcomes. The project-car community endorsement: the Stay Tuned YouTube channel has run the same $123 Maxpeedingrods turbo in a couple of their cars — a public-facing YouTube build channel uses the same low-cost maXpeedingrods turbo on V8 Lincoln and slant-6 Dodge platforms, presumably with documented results.

The pre-install discipline that bridges the two outcomes: recommend taking the housing off and inspecting it. Disassemble. Inspect the bearing cartridge for shaft-play. Inspect both housings for machining swarf. Blow out the oil-supply passages with shop air. Reassemble with confirmed cleanliness. The discipline does not eliminate the QC variance — a manufacturing defect in the bearing or the casting cannot be inspected away on the bench — but it eliminates the install-side gotchas (debris ingestion, oil-passage blockage) that account for a substantial share of the documented early failures.

For the underlying turbocharger engineering background, the Wikipedia turbocharger and IHI RHB31 frame reference covers the small-displacement turbocharger architecture at the system-design level. The TSReman Turbo University small-engine turbocharger catalog publishes the IHI VZ21 / RHB31 service-part manifest, and the Rotomaster understanding turbochargers reference covers the rebuilder-tier alternatives for buyers comparing entry-tier journal-bearing units against ball-bearing premium options.

How to Buy

Amazon ASIN B01A0MG5OM. Confirm the application is in the 500-600cc envelope and the buyer is committed to the pre-install disassembly discipline.

The maXpeedingrods VZ21 RHB31 Small-Engine Turbocharger is listed on Amazon under ASIN B01A0MG5OM. SpoolBench's affiliate link below opens the listing with our tag attached. The current price sits at the low-three-figure entry tier — at the bottom of the small-engine turbo segment range, and roughly an order of magnitude below the Garrett GT0632SZ small-frame rebuilder-tier alternative.

Disassemble. Inspect. Clean. Verify zero shaft-play. Then install — and accept the QC variance.

Check Price on Amazon — for snowmobile / quad / project-car applications where the failure consequence is limited. For daily-driver Mazdaspeed3 / Subaru WRX / BMW M3 replacement, route to BNR, Corksport, or Garrett rebuilder-tier alternatives per the Mazdaspeed3 community recommendation. Compare against the maXpeedingrods T3/T4 T04E review for the mid-frame 1.5L-2.5L lane, the Autodevil T3/T4 T04E review for the same mid-frame on a different brand, or the Autodevil GT45 T4 review for V6 / V8 big-frame builds in the 4.0L-6.0L envelope. Three signals would shift this maXpeedingrods VZ21 verdict: verified-buyer review pool recovering from the documented 2023-2025 rating decline, an explicit Amazon warranty term matching the eBay-channel 2-year claim, and consistent post-2025 verified-buyer feedback that the bearing-cartridge QC variance has been resolved.

How the Verdict Was Built

We synthesize the verified Amazon listing data (15 verified atoms covering 500-600cc envelope, six-stamp OE chain, four material claims shared with the larger T04E sibling, the Amazon verified-buyer shaft-play failure quote, the successful Kubota install report, three Reddit community references documenting both catastrophic failures and 15,000+ mile successes, the Stay Tuned YouTube channel use case, and the Mazdaspeed3 brand-pivot recommendation), the Amazon Creators API Tier A cache (research/api-cache/static/B01A0MG5OM.yaml), the broader 40-listing small-engine VZ21 RHB31 segment, and the same atom-substrate research approach used for the rest of Cluster D.

The limits are explicit. We cannot independently verify maXpeedingrods' bearing-cartridge QC discipline. The 11 hash-mismatched atoms in the 2026-05-12 refresh window represent shopping-aggregation drift (pricing snapshot, rating timeline metadata, competitor-listing comparisons that moved or were deleted since the 2026-05-07 initial extraction); they are queued for re-extraction but do not gate this editorial verdict.

VZ21 RHB31 Buy Decisions

What is the smallest production turbo?

The VZ21 (IHI RHB31 frame) on this maXpeedingrods listing is one of the smallest production turbochargers ever shipped on a passenger or recreational vehicle. The OE VZ21 came on the Suzuki Cappuccino (660cc Kei-class sports car, 1991-1998) and on the F6A engine family used in Japanese Kei-truck applications. The frame is rated for 500-600cc displacement and roughly 100 HP — at the low end of the global turbocharger spectrum. Other small-frame production turbochargers include the IHI RHB31 / RHB32 (Daihatsu Charade), the KKK K03 (BMW 318i E36 1.8L, the Cluster D mid-frame lane), and the Borg Warner KP35 (Smart ForTwo).

What is the smallest production turbo on a Kei-class engine?

The VZ21 is among the smallest production turbochargers in the global automotive supply, originally engineered for the Suzuki Cappuccino F6A 660cc Kei-class sports car. It ranks alongside the IHI RHB31 / RHB32 (Daihatsu Charade), KKK K03 (BMW 318i E36 1.8L), and Borg Warner KP35 (Smart ForTwo) as the smallest production-frame turbos ever shipped on consumer vehicles. The aftermarket maXpeedingrods VZ21 RHB31 listing on this review carries that same frame size, designed for 500-600cc snowmobile, quad, motorcycle, and Kubota diesel applications.

What's the smallest production turbo on the market today?

On the new-production market today, the smallest production turbochargers are still in the IHI VZ21 / RHB31 family for Kei-class displacement applications (500-660cc), plus the BorgWarner KP35 family (1.0L Smart / Mini cooper). On the aftermarket reproduction side, this maXpeedingrods VZ21 RHB31 listing is one of the lowest-displacement universal turbo frames in continuous Amazon availability. For builders looking at the smallest production turbo on a global passenger-car platform, the Suzuki Cappuccino OE VZ21 is the canonical reference point — and the maXpeedingrods listing covers the aftermarket replacement for that frame.

Will this turbo fit a 600cc Kubota or motorcycle?

The VZ21 RHB31 frame is sized for the 500-600cc displacement envelope. The verified-buyer pool includes one report of a successful install on a 600cc Kubota diesel application with the addition of a fabrication-side flange kit, which suggests the frame is physically compatible with the displacement range. Snowmobiles and motorcycles in the 500-600cc range share the same envelope. Fitment is non-OE — the turbocharger is universal and requires a fabrication-side adapter flange to mate to the existing exhaust manifold or fabricated header.

Are maXpeedingrods turbos reliable?

maXpeedingrods turbo reliability is "hit or miss" per the broader community consensus. The verified-buyer pool on this listing and the r/projectcar / r/mazdaspeed3 community archives include both catastrophic early failures (a Mazdaspeed3 owner reported failure under 12 hours of use; another buyer reported 15-minute shaft-play failure) and long-term successes (one Reddit owner reports 15,000+ trouble-free miles, the Stay Tuned YouTube channel uses the same $123 maXpeedingrods turbo on a V8 Lincoln and a slant-6 Dodge truck). For high-investment builds and high-mileage daily drivers, the Mazdaspeed3 community recommends BNR, Corksport, or Garrett turbos over maXpeedingrods. For low-investment fun-vehicle projects (snowmobiles, ATVs, project cars), the brand has a defensible spot at the entry tier.

Should you disassemble the turbo before installing it?

Yes — disassembly and inspection on arrival is the consistent Reddit / project-car community recommendation for off-brand budget turbochargers in this price tier. The same discipline that applies to the Autodevil T3/T4 T04E and Autodevil GT45 T4 listings applies to the VZ21 RHB31. Pull the compressor housing, pull the turbine housing, inspect the wheels and the bearing cartridge for machining swarf or metal debris, blow out the oil passages with shop air, reassemble with confirmed cleanliness, check shaft-play at the wheels before clocking the unit in. Off-brand turbos are not bolt-on plug-and-play products at this price tier — the disassembly step is the difference between a successful install and a destroyed bearing cartridge in the first 15 minutes of run time.
