Volvo D12 Turbo Replacement Guide

Updated May 14, 2026

The Commercial Buyer Context

The Volvo D12 turbo replacement is fundamentally different from consumer-pickup or daily-driver turbo replacements. The buyer is purchasing the part as a business expense, often for a vehicle they don't personally drive, and the cost calculus weighs downtime against part cost on a completely different scale than consumer applications.

The buyer profile splits into three categories: owner-operator Class-8 truckers running a single rig, fleet managers running 5-50 trucks, and industrial / marine operators running stationary or near-stationary D12 installations. Each category has a different cost-vs-downtime calculus and a different warranty-claim tolerance. Owner-operators with one rig prioritize fast turnaround and structural reliability over absolute lowest cost. Fleet managers running 10+ trucks balance per-unit cost against operational complexity. Industrial operators value warranty depth and OE-cross-reference correctness above all other factors.

A Class-8 Volvo VNL or VNM truck off-route for a turbo replacement costs the fleet operator $800-$1,500 per day in lost revenue, deadhead miles, and driver downtime. A standby generator with a failed D12 turbo costs the facility operator emergency power-rental fees plus the operational risk of running on a single-source power supply. A marine vessel with a failed D12 turbo costs the operator port-of-call delays, fuel-replanning costs, and potentially missed delivery windows. The $1,500-$2,500 aftermarket savings vs dealer matters less than the 1-2 day faster turnaround that aftermarket parts availability provides over the dealer parts-counter chain.

The architectural background on heavy-duty diesel turbo design and the Holset HX52 frame within the broader Cummins-Holset supplier family is documented at the Wikipedia turbo replacement reference and the supplier-tier breakdown lives at the Turbo University HX52 maintenance guide. The fleet-tier maintenance protocol covering scheduled-replacement intervals and cross-application install variability is documented at the ADP Distributors HX52 turbo service guide.

Dealer vs Aftermarket Math

Volvo Trucks dealer pricing for the D12 turbo replacement runs $3,500-$5,200 on Class-8 truck applications. The labor band is 8-12 billable hours plus the OEM Holset HX52 part at $1,400-$1,900 wholesale. Marine D12 applications add 2-4 hours of shop time for engine-bay access constraints.

Aftermarket OE-equivalent cross-references on Amazon cover the Holset HX52 frame at $700-$1,200. The BuyAutoParts 40-30314AN HX52 cross-reference ships at the structural-replacement price point with a 12-month unlimited-mileage warranty. Independent heavy-duty diesel shop labor: $800-$1,400 on the Class-8 chassis, $1,000-$1,800 on marine applications.

For fleet operators running 3+ Volvo D12 trucks, the in-house rebuild program through Industrial Injection or BD Diesel becomes economically rational. A specialty shop charges $400-$800 per cartridge CHRA rebuild on supplied core, vs $700-$1,200 for new aftermarket cross-reference replacement. The trade-off is longer turnaround (5-10 days for rebuild vs 1-3 days for Amazon Prime-stocked aftermarket parts) and the operational complexity of maintaining a core-exchange program. The structural fit depends on fleet size, replacement frequency, and downtime tolerance.

Confirm the Application First

The Volvo D12 ships in three distinct application configurations, and each has slightly different turbo install-side hardware despite using the same Holset HX52 frame. Confirm the OE stamp against the specific application before ordering.

Warranty and Downtime Considerations

For commercial-buyer applications, the warranty terms and the supplier-side claim process matter more than the warranty length on paper. A 12-month unlimited-mileage warranty with a 30-day claim-process turnaround is operationally superior to a 36-month warranty with a 6-month claim turnaround for a fleet operator whose downtime cost dwarfs the part cost.

The Amazon aftermarket cross-reference path through BuyAutoParts ships with a 12-month unlimited-mileage warranty and a documented 7-14 day claim turnaround. The Volvo Trucks dealer parts warranty (12-month / 100,000-mile commercial) has a faster claim turnaround but a higher upfront cost. Industrial Injection, BD Diesel, and rebuild-tier offerings carry 24-36 month warranties at premium pricing with variable claim-process turnaround depending on the supplier.

The maintenance protocol covering the post-replacement service intervals and the cross-application install variability is documented at the Rotomaster turbo replacement maintenance guide. The supplier-tier OE manifest covering the HX52 / HX55 cross-application chain is documented at the BorgWarner heavy-duty turbo reference for cross-supplier context.

Install Completeness Checklist

The Holset HX52 install on a Volvo D12 takes 8-12 hours on Class-8 truck applications and 10-14 hours on marine D12 applications due to engine-bay access constraints. The install-side hardware list runs longer than consumer-pickup turbo installs.

What you need: the turbo itself, V-band exhaust-manifold-to-turbo clamp and gasket, oil-feed crush washers, oil-drain gasket and bolts, coolant-line crush washers (heavy-duty applications use coolant-cooled bearing housings), downpipe V-band clamp, and the wastegate-actuator pneumatic line. For marine applications, also confirm the salt-water sealing kit — Volvo Penta marine D12 installations use additional corrosion barriers that Class-8 truck applications do not. The 8-12 hour install timeline assumes the exhaust-manifold studs come off cleanly; high-mileage trucks past 600,000 miles often need stud-extraction tooling and a half-day of additional labor. For fleet operators planning multi-truck preventive replacement, batching the work across 2-3 trucks per shop visit reduces per-unit labor cost by 15-20% through shared setup and tooling time.

Our Conversion Pick

For 80% of Volvo D12 readers landing on this page with a confirmed-failure diagnosis and a downtime-cost calculus that favors aftermarket-path savings, the structural answer is the BuyAutoParts 40-30314AN HX52 (B014VPPUCW) as the conversion target — 12-month unlimited-mileage warranty, OE-equivalent Holset HX52 frame, no core charge. Total project cost: $700-$1,400 in parts, $800-$1,800 in independent-shop labor. Against the $3,500-$5,200 dealer estimate, the savings is $1,500-$2,500.

For 20% of readers running multi-truck fleets where in-house rebuild programs make economic sense, the structural answer is the rebuild-tier path through Industrial Injection or BD Diesel — longer turnaround, lower per-unit cost, deeper warranty terms. For fleet operators considering an engine-platform upgrade (D12 → D13 or D12 → Cummins X15), our Cummins X15 vs Heavy-Duty Engines knowledge reference covers the cross-engine landscape. For the cross-engine heavy-duty roundup including the Cummins 6BT industrial sister-platform, see our cross-engine heavy-duty diesel roundup and the taxonomy context at our Turbocharger Types — Taxonomy and Comparison reference.

Check Price on Amazon — BuyAutoParts 40-30314AN HX52

Volvo D12 Replacement Questions

How much does it cost to replace a turbo on a Volvo D12?

Volvo Trucks dealer pricing for D12 turbo replacement runs $3,500-$5,200 (parts plus labor) on Class-8 truck applications. Independent heavy-duty diesel shops come in at $2,800-$4,000 for the same work. Aftermarket OE-equivalent Holset HX52 cross-references on Amazon (BuyAutoParts 40-30314AN and similar) sit at $700-$1,200, plus $800-$1,400 in shop labor for the swap. Marine Volvo D12 applications add 1-2 hours of shop time for the engine-bay access constraints. The aftermarket-path savings vs dealer is $1,500-$2,500 on the Class-8 chassis.

How much does it cost to replace a turbo on a semi truck?

Class-8 semi-truck turbo replacement costs vary by engine platform but follow a similar dealer-vs-aftermarket pattern. Cummins ISX / X15 turbo replacements at the dealer run $3,800-$5,500. Detroit Diesel DD15 / DD16 dealer replacements run $4,200-$5,800. Volvo D12 / D13 dealer replacements run $3,500-$5,200. Paccar MX-13 dealer replacements run $4,000-$5,500. Across all platforms, the aftermarket OE-equivalent path saves $1,500-$2,500 vs dealer pricing with similar warranty depth on the right cross-reference part.

What turbo does the Volvo D12 use?

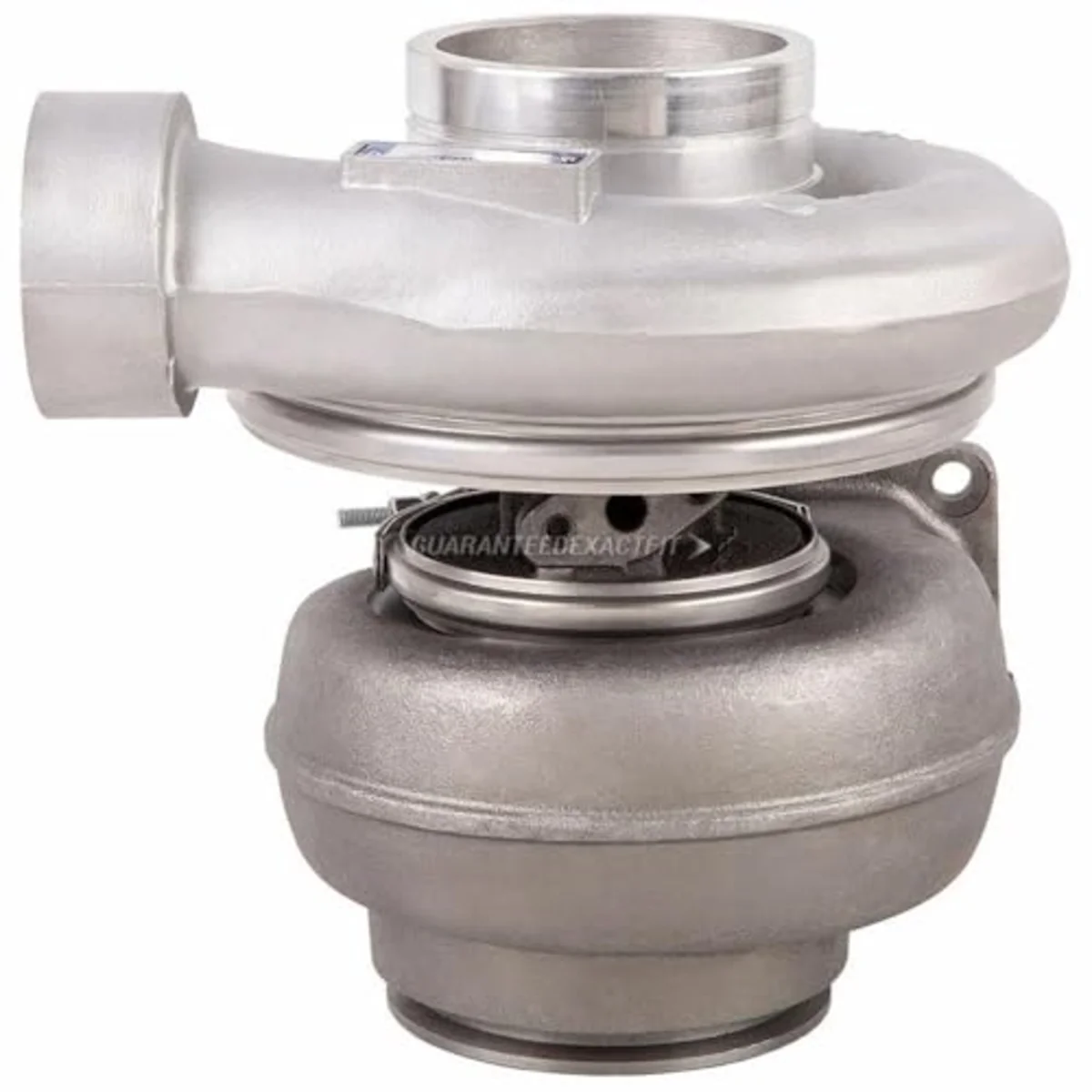

The Volvo D12 (1992-2007 production) uses the Holset HX52 turbocharger in most US Class-8 truck applications and the HX55 in marine and industrial generator applications. The HX52 is a wastegate-design turbo with a 65mm inducer / 91mm exducer compressor wheel and a 70mm inducer / 65mm exducer turbine wheel. Cummins owns Holset, so the HX52 ships with Cummins-stamped corporate branding even on Volvo applications — the cross-reference family on Amazon is universally Holset HX52.

What is the difference between the Volvo D12 and D13?

The Volvo D12 was the 12-liter (12,130cc) Class-8 engine produced from 1992-2007. The D13 replaced it as the 13-liter (12,777cc) successor engine from 2007-present. The D13 uses a variable-geometry Holset turbo (similar architecture to the Cummins 6.7L Ram pickup) rather than the D12 fixed-wastegate HX52. Cross-reference parts are NOT interchangeable between D12 and D13 — different turbo platform, different OE chain. For D13 applications, the Holset variable-geometry replacement protocol applies; for D12 applications, the HX52 wastegate-design replacement protocol applies.

Are Holset turbos good for marine and industrial applications?

Holset turbos are the structural standard for marine and industrial heavy-duty diesel applications across the Volvo D12 platform. The Cummins-owned manufacturer produces turbos for marine engines (Volvo Penta, Caterpillar Marine), industrial generator sets (Volvo Penta industrial, Cummins industrial), and Class-8 truck applications on overlapping engine platforms. Marine applications run the HX55 frame (slightly larger compressor for sustained low-RPM load). Industrial generator sets run the HX52 or HX55 depending on configuration. Service life under sustained load: 12,000-20,000 operating hours.

What is the warranty on aftermarket Volvo D12 turbos?

The Amazon aftermarket cross-reference Holset HX52 turbos for Volvo D12 typically ship with a 12-month unlimited-mileage warranty from the supplier. BuyAutoParts 40-30314AN specifically offers a 12-month unlimited-mileage warranty with no core charge. Volvo Trucks dealer parts ship with a 12-month / 100,000-mile commercial warranty. Industrial Injection, BD Diesel, and Fleece Performance rebuild-tier offerings carry 24-36 month warranties at premium pricing. For Class-8 fleet operators, the warranty-claim process and turnaround time matters more than the warranty length on paper — confirm the supplier-side claim protocol before ordering.

Can a Volvo D12 turbo be rebuilt instead of replaced?

Yes — rebuilders including Industrial Injection, BD Diesel, KC Turbos, and regional rebuild shops offer Holset HX52 cartridge CHRA replacement and complete-rebuild services. The cartridge swap path runs $600-$900 in parts plus $400-$600 in install labor. The complete-rebuild path runs $900-$1,400 with new bearings, seals, compressor wheel, turbine wheel, and balancing. For fleet operators with multiple D12 trucks, an in-house rebuild program with one specialty shop can cut per-turbo cost by 30-40% vs ordering new aftermarket replacements for each failed unit.
