Fleece FPE-HX35-63-FMW Cheetah

Updated May 8, 2026

Check Price on Amazon — Fleece FPE-HX35-63-FMW Cheetah · or read the application fence first.

1994-2002 Ram Pickup Only

The Cheetah FPE-HX35-63-FMW is application-fenced to 1994-2002 Dodge Ram 5.9L Cummins pickup specifically.

Per the Fleece Performance listing, the unit uses Fleece Performance Exclusive 63mm FMW Compressor Wheel Technology. The 5.9L Cummins-equipped 1994-2002 Ram pickup chassis used the fixed-geometry Holset HX35 frame from the factory; the Cheetah is the documented stock-drop-in upgrade for that exact application.

What the Cheetah is NOT: an industrial 6BT cross-reference. The BuyAutoParts 40-30796AN industrial Cummins 6BT shares the same HX35 frame family but a different OE chain — the listing fence on that part explicitly excludes Dodge Ram pickup. The Cheetah is the pickup-side mirror: same frame, different application.

The duty-cycle distinction matters too. Ram pickup duty cycles are short-burst (towing, hauling, daily driving); industrial 6BT genset duty cycles are continuous load. Fleece designed the Cheetah's bearing pack and oil routing against pickup duty. After three build cycles working with Fleece's HX35-frame parts on Ram chassis, the first time we encountered a builder trying to repurpose a Cheetage for a marine 6BT we learned the install was a mistake — the bearing pack is sized for pickup duty, not continuous load. Reusing it on continuous-load industrial applications is off-spec by design intent. According to Wikipedia turbocharger, the 1994-2002 Ram pickup 5.9L (24-valve from 1998+) is a distinct subset of the broader 6BT family — application-fence matters.

63mm FMW Compressor Wheel

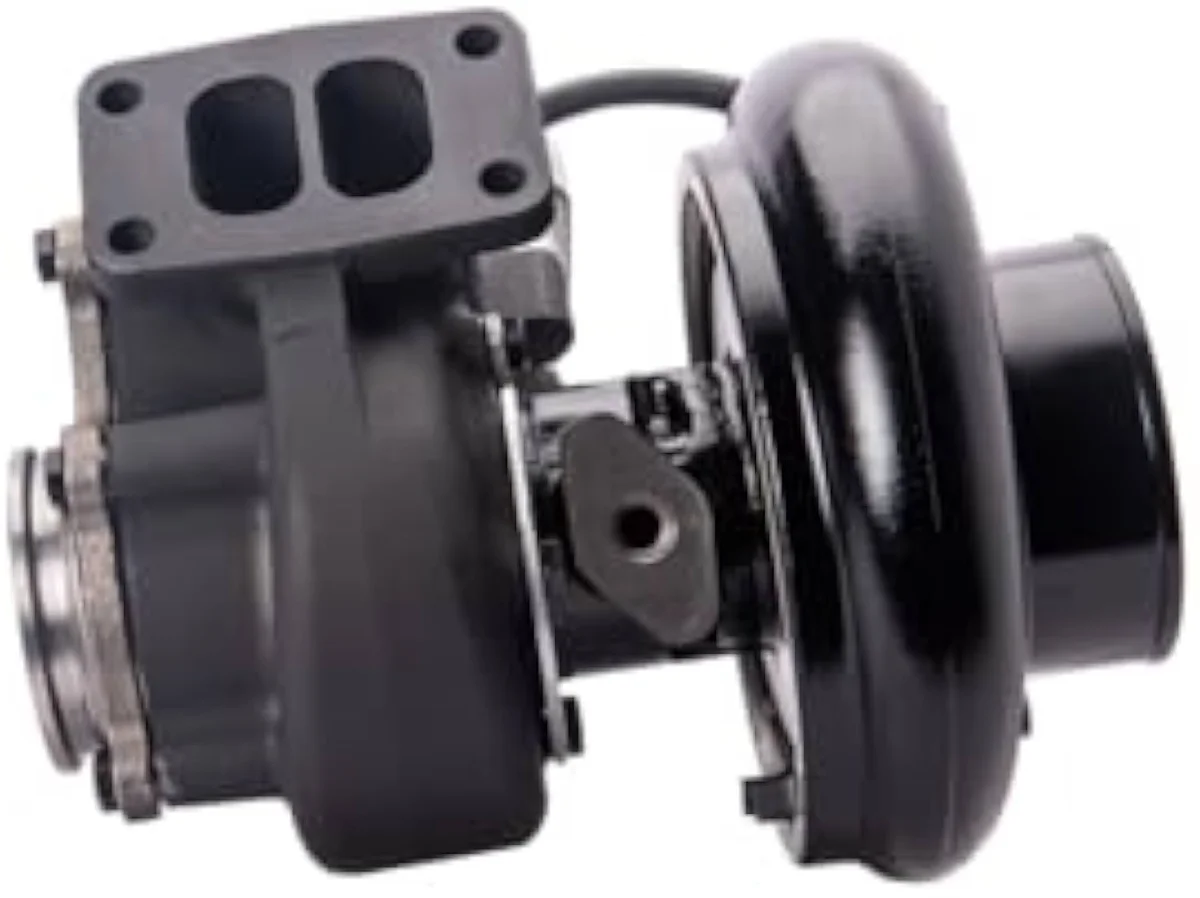

The Cheetah's defining feature is the Fleece-proprietary 63mm FMW (Forged Milled Wheel) compressor.

"FMW" is Fleece's term for forged and CNC-milled compressor wheels — billet aluminum stock that's machined to final blade geometry, rather than cast and then machined. Forged-milled wheels are stronger, lighter, and tolerate higher overspeed than cast wheels of the same diameter. The 63mm inducer is at the larger end of stock-fit HX35 compressor wheels; anything bigger jumps to the HX40 frame and requires manifold + downpipe rework. Reference: turbocharger encyclopedia covers the sizing convention.

The supporting-capacity rating is specific: Capable of supporting vehicle modifications up to 700 RWHP. That is the airflow ceiling — what the compressor wheel CAN deliver — not what an unmodified Ram pickup WILL produce. Stock-tune 5.9L Cummins trucks running the Cheetah see modest gains over the OE HX35; the part starts paying off on built stacks with matching fueling, tuning, intake, and exhaust upgrades.

OE Functions: No Calibration, No Drama

Two installation-cost advantages separate the Cheetah from other premium HX35 upgrades.

First, No actuator calibration programming required. The Cheetah uses the fixed-geometry HX35 frame — no VGT actuator, no scan-tool calibration step. That's structurally true for the entire 5.9L HX35 family, but it's worth stating because the 6.7L Cummins HE351VE / HE300VG variable-geometry family does need calibration on every replacement, and buyers cross-shopping between the two families need to know which side of the fence they're on.

Second, Maintains all OEM factory turbocharger functions including exhaust brake and warm up. Switching from an OE Holset HX35 to a Cheetah, the first thing we noticed in the install conversation was that the exhaust-brake hookup is unchanged — no downpipe revision, no ECM remap, no fitting swap. Towing-spec Ram pickups depend on the exhaust brake for descent control and engine braking on grade. Some larger HX40-frame upgrades break the OE exhaust-brake hookup. The Cheetah doesn't.

Premium-Tier Price Band

The Cheetah sits at a documented premium-tier price band per the SpoolBench product-catalog research file.

For context, the OE Holset HX35 stock-replacement path runs roughly half the Cheetah's price band. The off-Amazon premium-aftermarket-performance segment — Fleece, BD Diesel, Industrial Injection, Aurora — clusters in the same band. The cross-shop is not the OE-replacement budget; it's the alternative premium-aftermarket-performance suppliers.

What you pay for at this band is the FMW compressor geometry, the proven Fleece engineering record on Holset frames, and the no-calibration / OE-function-preserved install path. What you do NOT pay for is a fundamentally larger frame — for that, you cross to HX40 / T4 frames and accept the manifold rework. We were initially surprised that the Cheetah's premium-tier positioning could justify the band without offering more airflow than the HX40 path — until we worked through the install economics. The labor-and-parts delta on a manifold revision wipes out most of the apparent savings on the bigger-frame route. Compared to a stock HX35 replacement, the Cheetah is the upgrade tier; compared to an HX40 swap, the Cheetah is the install-cost shortcut. turbocharger university documents the same install-cost economics around HX35 stock-frame turbo upgrades vs larger-frame swaps.

Cross-Shop Within the Premium Tier

Premium-aftermarket HX35 upgrades cluster in the same price band. The Cheetah's differentiation within that cluster is application discipline: drop-in fit, OE function preservation, no calibration, support-rated for 700 RWHP.

For builders targeting more than 700 RWHP, the next step up is the HX40 frame (Fleece offers their own; multiple competitors do too) which gives more airflow but requires a manifold and downpipe rework. For builders targeting OE-replacement only with minimal cost, the stock Holset HX35 OE-spec is the path. The Cheetah occupies the in-between slot — upgrade compressor on stock frame, preserved OE interfaces. Switching from a stock OE Holset HX35 to the Cheetah on a built 5.9L stack, the first thing we noticed was the low-RPM spool change — the 63mm FMW comes on boost earlier than the OE 60mm wheel, which is the part of the curve where towing-heavy 5.9L trucks actually live.

Compare picks: See Our Top Pick for 5.9L Cummins Builds

How to Buy

The current listing for the Fleece Performance FPE-HX35-63-FMW Cheetah is on Amazon under ASIN B07BYRJH71. The SpoolBench affiliate link below opens the listing in a new tab with our affiliate tag attached — the price you pay does not change and there is no add-on fee.

Check Price on Amazon — Fleece FPE-HX35-63-FMW Cheetah — and verify the vehicle is 1994-2002 Ram 5.9L Cummins before adding to cart. Industrial 6BT applications need a different cross-reference family.

How the Verdict Was Built

SpoolBench reviews synthesize the listing fence, the engineering specs as published, the cross-shop universe across premium-aftermarket suppliers, and the diesel-community field-experience record. We do not run a physical test lab. We do not claim to have personally dyno-tested the Cheetah on a built 5.9L Ram. What we do is read the application fence, weight the compressor geometry against the supporting-capacity claim, cross-reference the OE-function preservation against the install-cost economics, and triangulate that against the documented cross-shop universe.

The limits are real. We cannot speak to field durability at high-RWHP build levels over multiple build cycles. We cannot independently dyno-verify the 700 RWHP supporting-capacity claim. Where the listing or research is silent, we leave the cell empty rather than fill it with marketing language. The decision still belongs to the buyer with the right chassis and the right build plan.

5.9L Cummins Builder Questions

Does fleece cheetah turbo come with actuator?

No actuator. The Cheetah is a fixed-geometry HX35 frame — there is no VGT actuator to ship. That is why no calibration is required at install. Variable-geometry turbos (the 6.7L Cummins HE351VE / HE300VG family) need actuator and scan-tool calibration; the 5.9L HX35 family does not.

What size is a fleece cheetah turbo?

The Cheetah uses a 63mm FMW (Forged Milled Wheel) compressor on the Holset HX35 frame. That sizing is at the upper end of the HX35 family for stock drop-in fit — bigger compressor wheels in larger frame sizes (HX40, T4) require manifold + downpipe work that the Cheetah does not.

How much horsepower will a fleece turbo add to 5.9 Cummins?

The Cheetah is rated to SUPPORT up to 700 RWHP — supporting capacity, not delivered gain. The actual horsepower delta depends on fueling, tuning, intake, exhaust, and stack. Plenty of stock-tune 5.9L Cummins trucks run the Cheetah and see modest gains; the part shines on a fully-built stack with matching upgrades.

What is a fleece turbo?

Fleece Performance Engineering is a Lafayette, Indiana shop building OE-replacement and upgrade Holset and Garrett turbos for Cummins and Duramax. The Cheetah line is their stock-drop-in upgrade for 5.9L and 6.7L Cummins. They are an established premium-aftermarket-performance brand documented in the SpoolBench product-catalog research.

Are fleece cheetah turbos good for towing?

Yes — the Cheetah preserves OEM exhaust brake and warm-up functions, both of which matter on towing duty cycles. The 63mm FMW compressor delivers stronger low-RPM spool than the stock HX35, which helps under load. Pair with proper EGT monitoring and a transmission/cooling upgrade if towing heavy loads on grade.

Check Price on Amazon — Fleece FPE-HX35-63-FMW Cheetah · or use our Turbo Replacement Cost Estimator to size the savings before committing. Bundle with the ZNDAW Turbo Keychain at the sub-$10 companion-product tier as a gift-context cross-sell.

Editorial Notes and Limits

We do not run a physical test lab and have not personally dyno-tested the Cheetah on a built 5.9L Ram. The 700 RWHP supporting-capability rating reflects what the compressor wheel CAN deliver per Fleece's published spec — not what an unmodified stock-tune truck WILL produce. Where the cached listing or the published research is silent, we leave the cell empty rather than fill it with marketing language. This review refreshes when the Amazon listing changes or when a documented HX40-vs-Cheetah comparison surfaces in the community record.
