Cummins 6BT 5.9L Turbo Replacement Guide

Updated May 14, 2026

Industrial vs Pickup Applications

The Cummins 6BT 5.9L is the same engine family across industrial and Dodge Ram pickup applications. The turbo itself (Holset HX35) is shared across both. Install-side hardware varies enough that parts cross-reference requires confirmation against the specific OE application before ordering — the turbo fits; the install bag and exhaust-manifold flange geometry may not.

Industrial 6BT applications include irrigation pumps, agricultural combines, marine generator sets, and standby power systems. The 6BT in those applications drives non-vehicle equipment with different cooling, exhaust, and accessory-drive configurations than the Dodge Ram pickup. Industrial buyers typically run 8,000-15,000 hours on a turbo (equivalent to 250,000-400,000 vehicle miles) and value warranty depth over upfront cost. The OE-equivalent replacement path is structurally the right answer for industrial fleets.

1994-2002 Dodge Ram pickup applications dominate the consumer side of the 6BT 5.9L install base. The 12-valve (1994-1998) and 24-valve (1998.5-2002) engines both ship the Holset HX35 turbo, but with progressively refined wastegate-actuator calibrations and exhaust-manifold designs. The 12-valve engines hold the strongest forum reputation for raw durability; the 24-valve engines added electronic-injection refinements and slightly higher peak boost from the factory. Both platforms use the same physical HX35 turbo as the structural OE replacement.

1994-2002 Dodge Ram pickup applications using the same 6BT 5.9L engine share the Holset HX35 turbocharger but with pickup-specific exhaust-manifold flange geometry, oil-drain routing, and coolant-line connections. A cross-reference part stamped for "Cummins 6BT 5.9L" may fit the industrial application cleanly and require fitment adapters on the pickup. Confirm the application code on the OE part stamp before ordering. The architectural background on the HX35 frame and its cross-application heritage is documented at the Wikipedia turbo replacement reference and the rebuilder-tier service protocol is covered at the Turbo University HX35 maintenance guide.

Dealer vs Aftermarket Math

Cummins dealer pricing for the HX35 turbocharger replacement runs $1,800-$2,400 on the industrial 6BT application and $2,200-$2,800 on the Dodge Ram pickup chassis. The labor band is 4-7 billable hours plus the OEM Holset part at $800-$1,100 wholesale.

Aftermarket OE-equivalent cross-references on Amazon cover the same Holset HX35 frame at $400-$700. The BuyAutoParts 40-30796AN HX35 cross-reference ships at the structural-replacement price point with a 12-month unlimited-mileage warranty. The Fleece Performance HX35 63mm Cheetah sits at the rebuild-tier upgrade price band ($1,200-$1,600) with documented towing-optimized spool curve and 500+ wheel horsepower support. The billet impeller upgrade for the HX35 frame is the rebuild-tier option for owners reusing existing housings.

The savings math is asymmetric across the three tracks. Industrial buyers see the largest absolute savings ($1,200-$1,800 vs dealer) because their starting dealer quote is the highest. Pickup stock-replacement buyers see medium savings ($800-$1,500 vs dealer) on the same OE-equivalent part. Performance builders pay a premium for the Cheetah but the supporting modifications and competition use case justify the upgrade-tier spend on a different basis — performance, not replacement-cost economics. For fleet operators or industrial buyers looking at engine-platform alternatives, our Cummins X15 cross-engine reference covers the upgrade-platform considerations beyond the 6BT 5.9L generation.

Three Buyer Tracks

The 6BT 5.9L replacement decision splits into three distinct buyer tracks, each with a different conversion target. The structural fit depends on the application and the long-term ownership intent.

Track confusion is the most common $500-$1,200 mistake on this platform. Industrial operators buying performance turbos waste money on tow-spool curves their irrigation pump cannot benefit from. Pickup performance builders buying OE-equivalent HX35 replacements miss the towing-spool advantages of the Cheetah frame. And pickup stock-replacement buyers occasionally over-spec into industrial-warranty variants when their consumer-tier use case never invokes the longer warranty. Reading the track distinction below carefully matters more than reading any single product spec.

Install Completeness Checklist

The HX35 install on a 6BT 5.9L is structurally simpler than the variable-geometry 6.7L Cummins applications — fewer electrical connections, no actuator calibration, fixed wastegate-bypass design. The install-side hardware list still matters and varies between industrial and pickup applications.

What you need: the turbo itself, exhaust-manifold-to-turbo gasket (V-band or rectangular flange depending on application), oil-feed crush washers, oil-drain gasket, downpipe gasket, and the wastegate-actuator vacuum line (typically reusable but inspect for cracking after 200,000+ miles). For industrial applications, also confirm the air intake adapter — some industrial 6BT installations use an L-shape elbow that the Dodge Ram pickup applications do not. The maintenance protocol covering the cross-application HX35 install variability is documented at the Rotomaster turbo replacement maintenance guide and the supplier-tier OE manifest lives at the ADP Distributors HX35 turbo service guide.

The 12-valve and 24-valve Dodge Ram 5.9L applications share the same exhaust-manifold flange but have different injection-pump connections that affect access during the turbo swap. Plan on 6-8 hours for a first-time install on a pickup, and 4-6 hours on the cleaner industrial installation profiles. Owner-installer common gotchas include: snapped exhaust-manifold studs on high-mileage trucks (drill and re-tap, $30-$60 in tooling), seized oil-feed banjo bolts, and degraded coolant-line hoses that crumble when disconnected. The full step-by-step install reference covering both 12-valve and 24-valve variants is documented in our paired turbocharger repair decision guide.

Our Conversion Pick

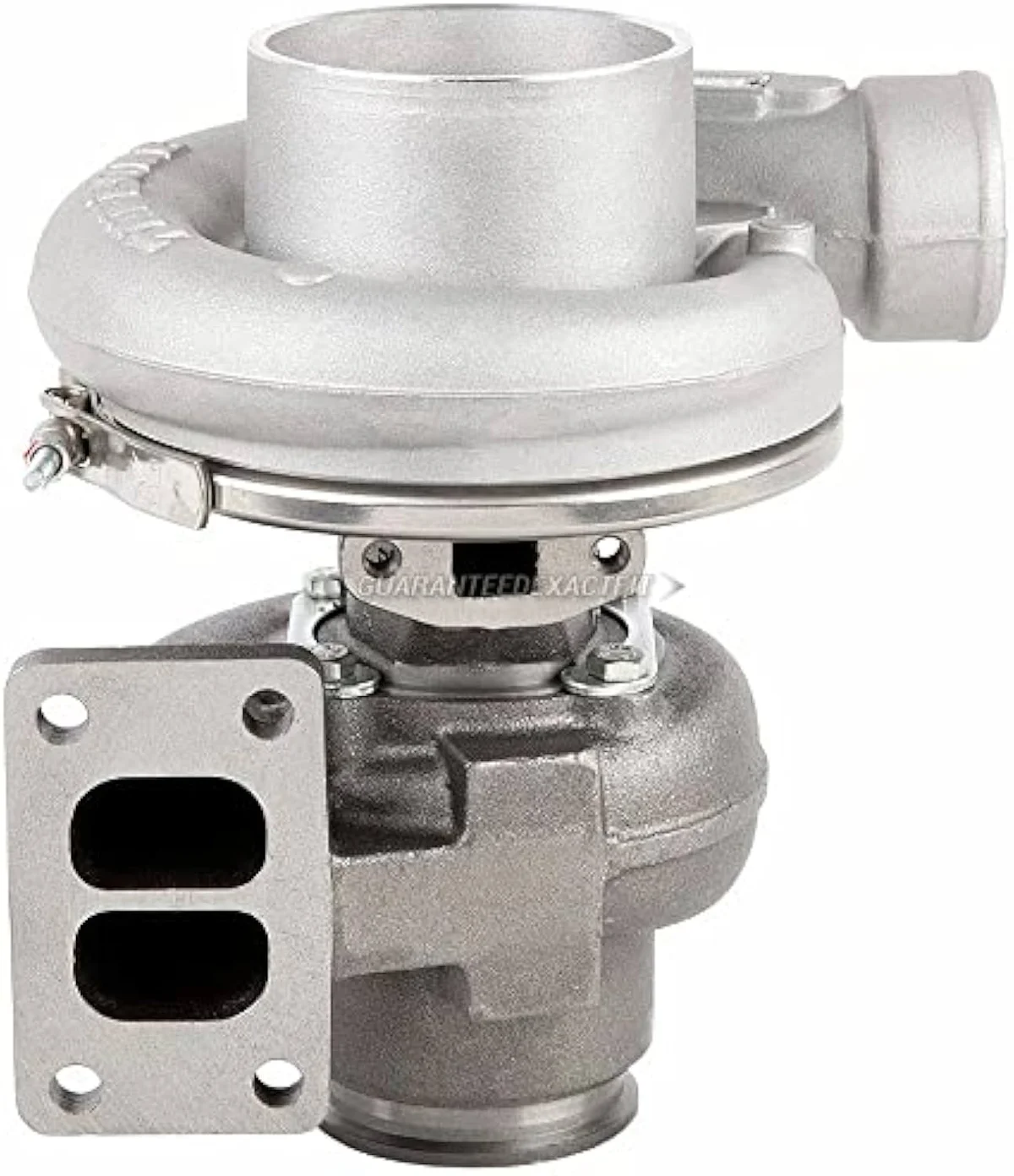

For industrial 6BT operators and 1994-2002 Dodge Ram pickup owners doing a stock replacement, the structural answer is the BuyAutoParts 40-30796AN HX35 (B014VPNM2M) as the conversion target — 12-month unlimited-mileage warranty, full install-kit, OE-equivalent Holset HX35 cross-reference. Total project cost: $400-$700 in parts, $400-$600 in independent-shop labor. Against the $1,800-$2,800 dealer estimate, the savings is $800-$1,500.

For 1994-2002 Dodge Ram pickup owners running performance or towing applications, the structural answer is the Fleece Performance HX35 63mm Cheetah (B07BYRJH71) — towing-optimized spool curve, 500+ wheel horsepower support, documented service life under sustained load. For X15 fleet operators considering a Cummins upgrade-path comparison, see our Cummins X15 vs Heavy-Duty Engines knowledge reference covering the cross-engine cross-shop landscape. The taxonomy context on the Holset HX35 frame within the broader turbo family lives at our Turbocharger Types — Taxonomy and Comparison reference.

Check Price on Amazon — BuyAutoParts 40-30796AN HX35

Cummins 6BT 5.9L Replacement Questions

Does Cummins make turbos for the 6BT?

Cummins owns Holset, the supplier that manufactures all OEM Cummins-application turbochargers including the HX35 frame on the 6BT 5.9L. Cummins does not directly produce turbochargers — the Holset subsidiary (acquired 1973, integrated as Cummins Turbo Technologies in 2006) handles all turbo manufacturing. For 6BT industrial applications, the HX35 is the factory frame; aftermarket cross-references are stamped with Holset OE numbers but produced by third-party manufacturers.

What turbo does the Cummins 6BT use?

The factory turbo on the Cummins 6BT 5.9L is the Holset HX35 wastegate-design turbocharger. The HX35W (wastegate variant) ships on most 6BT applications from 1994-2002. The HX35 frame uses a 60mm inducer / 83mm exducer compressor wheel, a 65mm inducer / 60mm exducer turbine wheel, and a fixed-geometry wastegate-bypass design. For industrial irrigation pumps, agricultural combines, and generator-set applications, the HX35 frame is the cross-engine standard.

Does Cummins own Holset turbo?

Yes — Cummins acquired Holset Engineering in 1973 and integrated the turbocharger division as Cummins Turbo Technologies in 2006. All OEM Holset-branded turbochargers on Cummins engines are produced internally within the Cummins corporate structure. This includes the HX35 frame on the 6BT 5.9L, the HX52 on the Volvo D12 applications, the HE351VE / HE300VG on the 6.7L Ram pickup, and the HE400VG / HE451VE on the Cummins X15.

What is a good turbo upgrade for the 5.9 Cummins?

The Fleece Performance HX35 63mm Cheetah is the most-recommended turbo upgrade for the 5.9L Cummins on the documented 1994-2002 Dodge Ram pickup applications. Service life: 200,000-250,000 miles with proper installation and bearing maintenance. Peak supported horsepower: 500-650 at the wheels depending on supporting modifications (injectors, head studs, transmission). For pure replacement (no upgrade), the BuyAutoParts 40-30796AN is the documented OE-replacement path at $400-$600 with full 12-month unlimited warranty.

How much horsepower will a Fleece turbo add to a 5.9 Cummins?

The Fleece Cheetah HX35 63mm adds 50-150 horsepower to a 5.9L Cummins depending on the supporting modifications. Stock fueling: 50-75 hp gain. Stage 2 fueling (injectors, fuel pump): 100-150 hp gain. Stage 3 fueling (custom injectors, lift pump, programmer): 150-200+ hp gain. The Cheetah supports 500+ wheel horsepower comfortably; reaching that figure requires fueling, intercooler, and exhaust-manifold upgrades alongside the turbo. The turbo itself is not the horsepower bottleneck on the 5.9L Cummins — fueling system capacity is.

Are Fleece Cheetah turbos good for towing?

The Fleece Cheetah HX35 63mm is structurally optimized for towing applications. The 63mm compressor wheel delivers strong low-RPM spool (full boost at 1,800-2,200 RPM vs the factory HX35 at 2,200-2,500 RPM), which is exactly the operating band where towing performance lives. Service life under sustained towing load: 180,000-220,000 miles (vs 200,000-250,000 for non-towing use). The trade-off vs the factory HX35: stronger low-end at the cost of 50-75 horsepower at peak RPM, which is not the towing operating band anyway.

What is the difference between the Cummins 6BT industrial and Dodge Ram 5.9L?

The Cummins 6BT 5.9L is the engine family; Dodge Ram pickup applications are one subset of 6BT installations. Industrial 6BT applications (irrigation pumps, agricultural combines, marine generators) ship with different oil-pan, accessory-drive, and exhaust-manifold configurations than the Dodge Ram pickup. The turbocharger itself (Holset HX35) is shared across applications, so cross-reference parts work on both — but the install-side hardware (manifold flange, oil-drain routing, coolant lines) varies. Confirm the OE part number against the specific application before ordering.
