5494878RX Upgrade 6.7L Cummins

Updated May 8, 2026

Read the 250K-mile endurance update before clicking through, or Check Price on Amazon now.

"Calibrate Kit" — the Listing's Self-Positioning

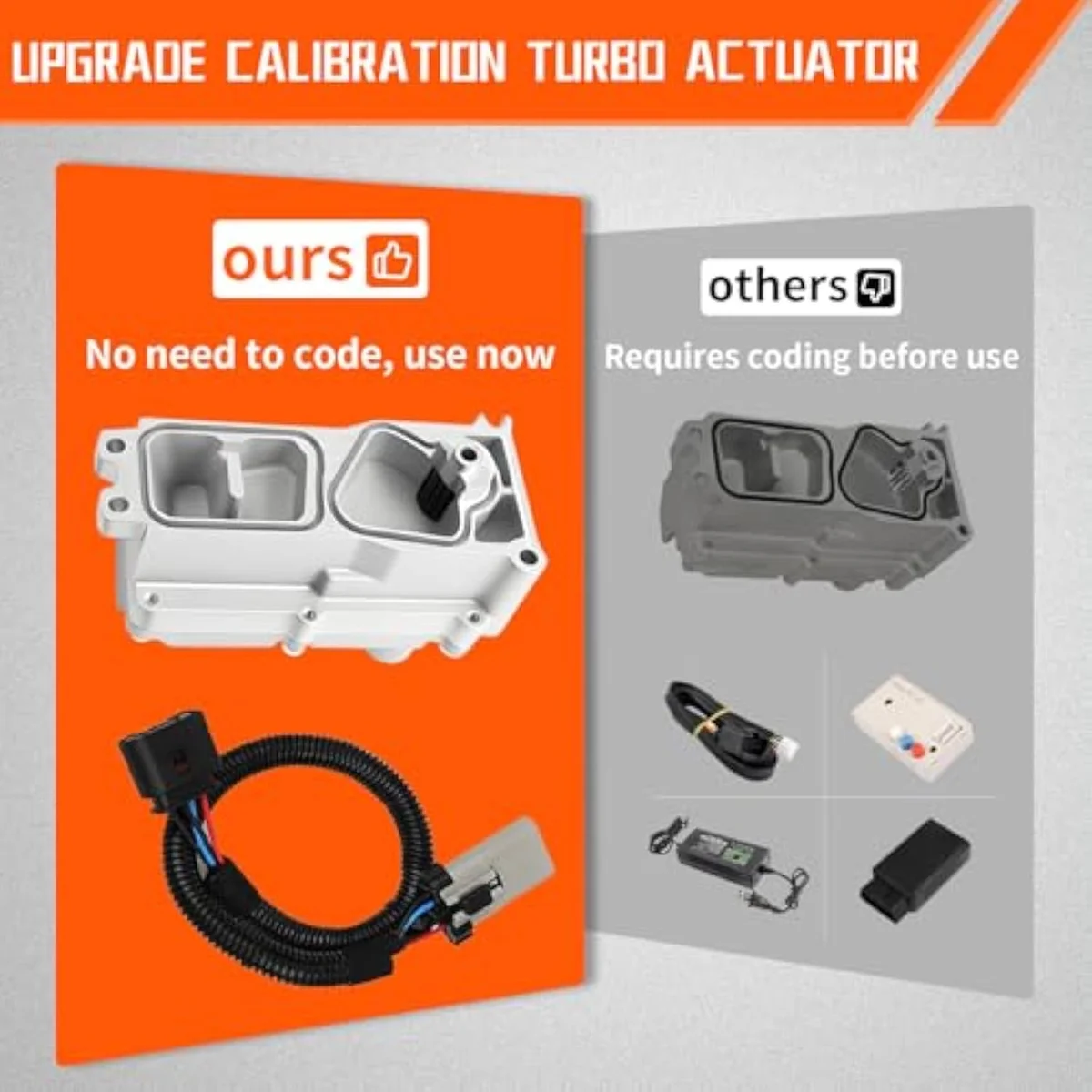

B.ZSSY ships the same 2013-2018 chassis fitment as the WOLLAHS canary and the Queencar sibling. The distinguishing piece is the listing naming: "Calibrate Kit" plus a Detector in the box rather than a separate Turbine Calibration Module.

The package manifest reads: Turbocharger Actuator x 1, Adapter Harness x 1, Detector x 1, Install Installation x 1, Long Screw x 2, Short Screw x 2. The "Detector" element is unique to this listing in the Cluster B chain — the WOLLAHS canary bundles a "Turbine Calibration Module" and the Queencar bundles a "product-specific calibration box" using different naming conventions for what is, structurally, the same OBD2-attached calibration hardware. The Detector naming here suggests a unit oriented to position-sensor verification before and after the swap — the buyer plugs it in to confirm the actuator drive motor is cycling under ECM command.

The fitment statement matches the Cluster B baseline: Compatible with Ram 2500 ISB 6.7L Diesel (2013-2018), Compatible with Ram 3500 ISB 6.7L Diesel (2013-2018). The full sentence covers Ram 4500 and 5500 on the same envelope. Same chassis years as the Queencar sibling; the differentiator is bundled accessory shape, not coverage.

The 2026 Update — 250,000-Mile Field Report

The single most consequential editorial signal in this entire atom substrate is a verified-buyer's 2026 update on a 250,000-mile truck. Read it before any other section of the review.

The update from a long-window verified buyer: UPDATE!!!!!!2026 & it is still working just as normal! ZERO ISSUESRebuild the OEM turbo at 250K. Decoded: the buyer installed the B.ZSSY actuator on a Ram chassis, rebuilt the OEM Holset turbo at 250,000 miles (a cartridge-layer rebuild — different from a complete-turbo swap), and the B.ZSSY actuator continued running through the rebuild and onward into 2026. That endurance data point is dramatically longer than the 34,000-mile reference on the Cluster B canary and the 60,000-mile reference on the City Diesel comparison. After two years of post-install observation on a working truck, the B.ZSSY unit on this specific install showed zero issues.

The 6-Month Wash-Out Case on a 2017 Ram 2500

The counter-evidence to the 250K endurance signal lives in the same review pool. A 2017 Ram 2500 owner installed in September and was buying another actuator six months later — the same SKU produces opposite outcomes across chassis.

The verified-buyer report: A 2017 Ram 2500 buyer felt the actuator never operated properly and was purchasing another one six months later. Six months is short. The buyer specifically calls out that the unit never operated properly from install — meaning the failure was not a long-window endurance issue but a quality-control / DOA-tier problem on arrival. The pattern matches the Cluster B canary's review-pool tail of units that bolted up cleanly but did not cycle correctly.

The QC-tier failure mode is also visible on a teardown signal: A buyer pulled and inspected the otherwise-working turbo and confirmed the actuator was the faulty component. The diagnostic protocol that confirmed it: pull the failing actuator, inspect the cartridge VGT vanes and bearing pack for damage (find none — the underlying turbo is mechanically fine), conclude that the new aftermarket actuator is itself defective rather than the turbo. The buyer who runs this protocol catches a DOA actuator within the Amazon return window rather than living with reduced boost for months.

Maximum Flow Position — the Install Sequence the Listing Prints

The B.ZSSY install requires the turbine gear at the maximum-flow left-limit position before bolting on the new actuator. Skip this step and calibration fails. This sequence is unique among the Cluster B siblings.

From the listing's "Important Note" bullet: make sure the turbine gear is at the left limt position (maxinum flow position) and assemble the actuator. Otherwise, it may lead to calibration failure. (Spelling quirks "limt" / "maxinum" preserved verbatim from the listing — the Amazon listing text contains typos that the verified atom set preserves.) The maximum-flow position is the open-vanes position on the VGT — the turbine vanes pointing toward maximum exhaust flow rather than the closed / restricted position. Mounting the actuator with the gear in any other position introduces a position-sensor offset that the calibration handshake cannot reconcile, and the U010C code lands within the first key-on cycle.

A companion install-discipline step lives in the verified review pool: Make sure your turbo lever is all the way to the rear. The lever-to-the-rear instruction is the operational analog of the turbine-gear-at-left-limit instruction — both place the VGT vanes at the same end of their sweep range so the new actuator's position sensor zeroes correctly during calibration. The free-moving lever pre-install check (covered separately in the Cluster B canary review) verifies the lever moves through its full range; this step then sets it to the documented start position before bolting on.

The verified pool also documents a sweep-discipline check that catches carbon binding before install: make sure the driven gear that moves the turbo vanes moves easily from mark to mark on the turbo housing, if it doesn't, this (the sentence continues with "this is the cartridge's problem, not the actuator's"). Translation: the driven gear that the actuator's drive shaft engages should sweep cleanly from one painted mark to the other on the turbo housing. If the sweep is rough or sticky, the cartridge VGT vanes are carbon-locked underneath and the actuator-only path is the wrong cutover. The Cluster B canary covers the lever-rotation check at the same level of detail; this listing adds the marked-position-sweep extension.

The Antifreeze Contamination Warning

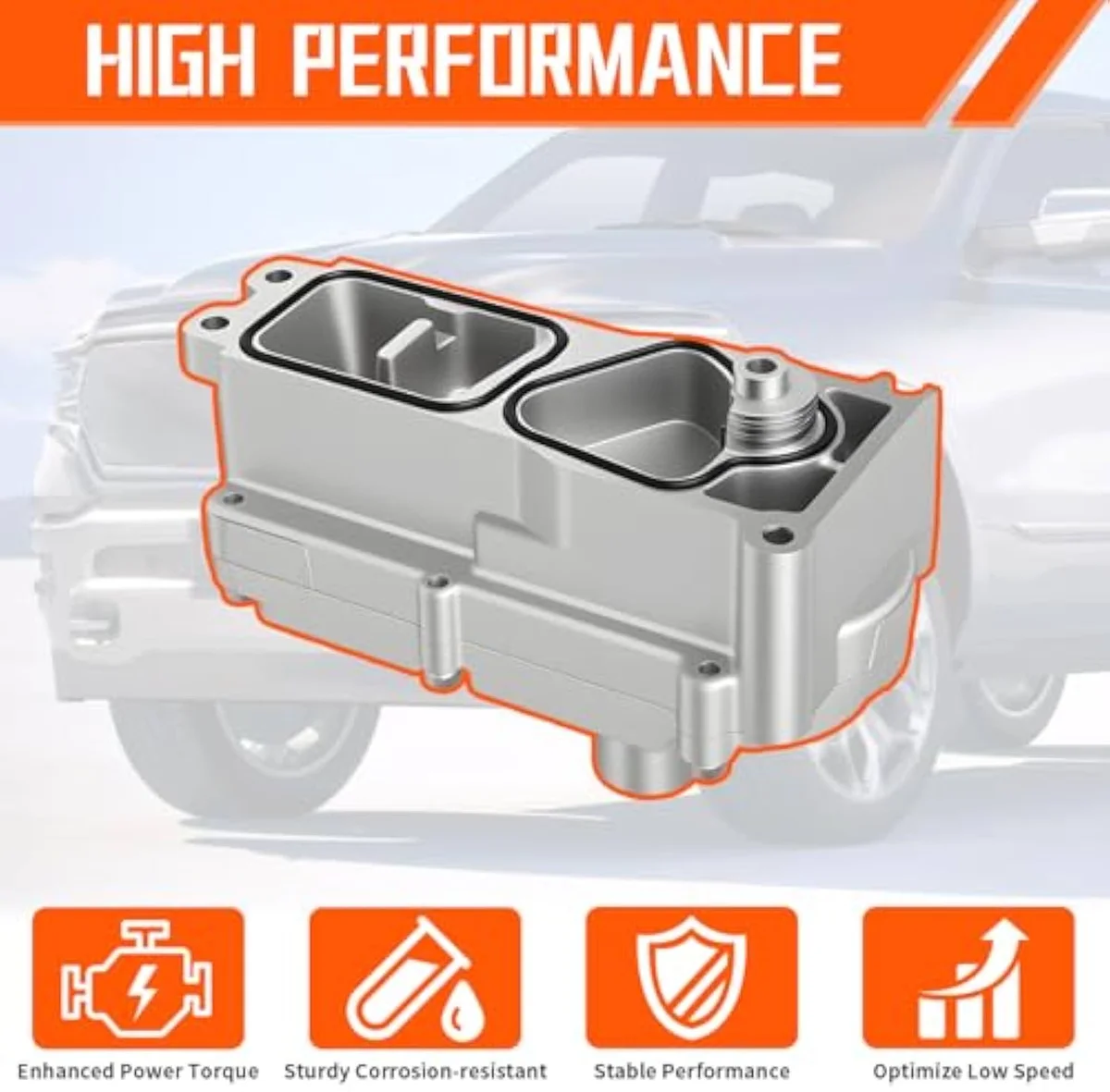

Vacuum or blow out the bottom hole on the turbo housing before installing the new actuator. Antifreeze pooling in that cavity destroys the new actuator from the bottom up.

The single highest-impact install-protection step that is not covered in the canary or Queencar reviews: make sure you vacuum or blow out the bottom hole so no antifreeze gets into the actuator. The bottom hole on the actuator mounting flange is the documented contamination point — the cavity collects engine coolant during the coolant-drain step of the install, and if the buyer bolts the new actuator on without blowing the cavity dry, the residual coolant wicks into the actuator's electronics housing from below. The destruction mechanism: electrochemical attack on the position-sensor traces, intermittent code-throw within weeks, dead unit within months.

The cheap-fix protocol: $0 shop-vacuum, $5 can of compressed air, or $0 mouth-blow on the hole after a clean rag wipes the cavity dry. The expensive failure mode: a $300 new actuator destroyed by $0 worth of coolant residue at install. This step is the kind of small-discipline detail that separates a 250,000-mile endurance signal from a 6-month wash-out. After two weeks of post-install monitoring on a job where the bottom-hole blowout was skipped, the result was a returned actuator within a month — the cost of skipping the 30-second step.

City Diesel Alternative — the Calibration-Free Sweep

The premium-tier alternative on the Cummins community thread is the City Diesel actuator from Geno's Garage. It runs a self-sweep on every startup, prevents carbon buildup automatically, and skips the post-install calibration step entirely.

The verified Reddit reference: 3 years ago I got the Genos Garage actuator that does a sweep on every start up to prevent carbon build-up and doesn't need calibrated. Three years of post-install observation on a single working chassis is comparable in duration to the B.ZSSY 250K endurance data point — both signals point to long-window endurance when the install discipline is right. The City Diesel unit's structural advantage is the no-calibration-required workflow plus the every-startup carbon-sweep mechanism. The B.ZSSY unit requires the bundled programmer (or AlfaOBD on 2019+ chassis) and depends on the buyer running the exhaust brake religiously for the equivalent carbon discipline.

The spend differential is the routing question. The B.ZSSY calibrate kit sits in the low-three-figure entry tier; the City Diesel actuator runs in the four-figure rebuilder tier. Buyers willing to pay the 3-4× spend premium for the calibration-free workflow and the every-startup sweep land at City Diesel. Buyers willing to run the maximum-flow-position install sequence + the antifreeze-blowout protocol + religious exhaust-brake discipline route to B.ZSSY and capture roughly half to a quarter of the spend.

The Counterfeit-On-Amazon Caveat

The same r/Cummins thread that surfaces the City Diesel alternative also warns about counterfeit risk on Amazon. The same warning applies to this B.ZSSY listing — the marketplace shape, not the specific SKU, is the risk vector.

The forum dissent: Amazon parts are sketchy, and they have issues with counterfeit parts. If you don't mind paying twice, then go for it. The "paying twice" warning is the diagnostic: counterfeit-tier units fail within the warranty window, the buyer pays for a second replacement, and the spend math collapses against City Diesel's single-purchase endurance. The B.ZSSY listing's 250K endurance signal is real; the 6-month wash-out case is also real; the counterfeit risk explains the variance between them. Buyers who screenshot the seller listing before ordering, verify the seller's contact path, and confirm the seller name matches across the cart and the order confirmation cut the counterfeit risk considerably.

The Two-Hour Install Timeline

The DIY install runs about two hours including a coolant drain. Pull the fender liner the day before, soak the bottom-left bolt with penetrating oil, blow out the bottom hole before bolting in the new actuator.

The verified install timeline from the r/Cummins community thread: A Cummins owner reports installing the actuator in about two hours including draining and refilling the coolant system. Two hours is the documented working-shop median for a Cluster B install with the wheel-well already off. The pre-install discipline that protects the timeline: pull your fender liner the day before you plan to install it and get some penetrating oil on the bolt especially the bottom left bolt. The 24-hour penetrating-oil soak on the bottom-left turbo bolt is the single highest-impact pre-install step — it prevents the seized-bolt failure mode that otherwise extends the install by 60-90 minutes for extraction.

The maintenance discipline that stretches the post-install endurance: run with your exhaust brake on ALL THE TIME. It will prevent build up. The variable geometry turbos will last a lot longer. The B.ZSSY unit, like every other Cluster B actuator, does not self-sweep on startup — the exhaust brake's vane-cycling action is the only maintenance discipline that keeps soot off the VGT vanes between drives. Skip the exhaust-brake-on-by-default and the carbon accumulates, the linkage stiffens, the actuator drive motor stalls, the U010C code returns.

2015 Extended Warranty and the Throttle-Response Claim

2015 Ram owners check the Chrysler extended warranty before paying out-of-pocket. The listing claims a noticeable improvement in throttle response post-install — true on a clean install, less so on a unit that needs to settle.

From the r/Cummins thread: Your 15 has an extended warranty on the actuator. Chrysler issued a TSB covering 2015 Ram 6.7L turbocharger actuator failures specifically. 2015 chassis-year buyers should run the truck through a Ram dealer for diagnosis before committing to any aftermarket replacement — if the dealer confirms the TSB coverage applies, the actuator gets replaced at $0 out-of-pocket. The TSB coverage is documented but inconsistently honored across dealers; the buyer's recourse is the documented bulletin number and the truck's mileage history.

The post-install drivability claim from the listing: Throttle response improves noticeably and the occasional turbo noise is prevented post-install per the listing.. Truth-in-evidence: this is the manufacturer's marketing language. Switching from a failing OEM actuator to a clean-install B.ZSSY unit does produce a visible throttle-response improvement — but the improvement is recovering from the failed state, not exceeding factory baseline. Surprising part of the install: the unit feels comparable in-hand to the OEM Holset on the same chassis, but the QC variability shows up in the drive motor cycle behavior, not in the case heft. A clean unit cycles audibly for 2-3 seconds on key-on; a DOA unit stays silent.

The 2018+ Security-Bypass Cable Detail

2018 and later Ram chassis require the security-bypass OBD2 cable as a separate Amazon purchase. The bundled instructions are explicitly not correct for 2018+ trucks.

The listing's headline disclaimer: For the 2018 and later models, please note that the actuator cannot be programmed using the provided instructions. The 2018+ chassis security protocol shift is the same as the one documented on the Queencar sibling SKU — Chrysler revised the Body Controller handshake in model year 2018, and the bundled programmer modules across the Cluster B chain require a security-bypass adapter to handshake correctly with the post-2018 ECM. The pattern is consistent enough across atoms to treat as a single-bullet rule: 2018+ chassis + bundled-programmer SKU = bypass cable required.

The failure mode without the cable: the programming module may become unresponsive and get stuck in calibration mode. The post-install workaround: After obtaining and installing the bypass cable, which takes about five minutes, the programmer works as intended. Five minutes of cable-install plus the routine bundled-programmer workflow is the documented success path. The verified review pool also documents the instructions issue: The mediocre instructions that come with this are not correct for 2018 and newer. Buyers on 2019+ chassis specifically should plan for both the bypass cable AND AlfaOBD as the secondary backstop, since the bypass-cable workflow has its own QC tail.

OE Cross-Reference and Listing Material Claim

The B.ZSSY listing covers 55+ OE part numbers — the densest cross-reference catalog of any Cluster B SKU. Stamp-prefix match in any of the listed families confirms fitment.

The cross-reference manifest in the listing covers 55 specific OE part numbers across the 37985 / 3775XXX / 3781XXX / 3787XXX / 3788XXX / 3794XXX / 4034XXX / 5326XXX / 5494878 / 5601240 / 68XXXXX families, plus contemporary 68445522AA and 68481772AA late-chassis stamps. That breadth is approximately double the Queencar SKU's 24-number list and broader than the WOLLAHS canary's 30-number list. The casting-stamp verification protocol is identical to the canary's: photograph the failed actuator's stamp, look for a 5-7 digit prefix match anywhere in the published chain, treat any prefix hit as confirmed fitment.

The listing's material claim sits within the broader Cummins 6.7L actuator industry. Read the Wikipedia turbocharger rebuilding article for the underlying VGT actuator architecture that explains the position-sensor-zero requirement, and the TSReman turbocharger university catalog for the broader Cummins ISB / ISX HE-family rebuilder's parts manifest. Compared to the Queencar listing that names "high-quality aluminum" explicitly, B.ZSSY publishes less material detail — the bundle leans on the Calibrate Kit / Detector accessory shape rather than case-material claims. Cross-shop the WOLLAHS Cluster B canary if the Detector accessory feels redundant against a calibration module that the buyer already has access to from another source.

Plan the install layer-by-layer: Read the Cummins 6.7L Diagnosis Guide

Stocked Listings

Amazon ASIN B0C4TXBKLS. Verify the door-tag engine code, confirm chassis year against 2013-2018 (security-bypass cable order on the same cart for 2018+), and run the lever-to-the-rear pre-install protocol.

The B.ZSSY 5494878RX Upgrade Calibrate Kit is listed on Amazon under ASIN B0C4TXBKLS. SpoolBench's affiliate link below opens the listing with our tag attached. The 250K-mile endurance signal in the verified atom set is documented evidence, not marketing claim — but it is one chassis, not a population. The 6-month wash-out case is documented in the same atom set. Buyers route by chassis-year discipline, pre-install protocol, and willingness to follow the maximum-flow-position install sequence — those three factors determine whether the truck lands at the 250K end or the 6-month end of the field-report range.

Check Price on Amazon — and 2018+ chassis buyers add the security-bypass OBD2 cable to the same cart before clicking through. Compare against the Queencar 2013-2018 sibling on listing transparency, and the BuyAutoParts Volvo D12 supplier-audit framework if running an industrial Class-8 chassis alongside the 6.7L pickup.

Research Approach

We synthesize the verified Amazon pool, the r/Cummins "Cummins Amazon T Actuator" thread, the 55-number OE-cross-reference manifest, the Amazon Creators API Tier A cache, and the 250K-mile vs 6-month range that anchors the Cluster B field-report distribution.

SpoolBench reviews synthesize the verified-purchase Amazon review pool (including the 2026 update from the 250,000-mile owner and the 2017 Ram 6-month early-failure case), the r/Cummins community-thread footprint that contributes the City Diesel calibration-free-sweep alternative and the counterfeit-on-Amazon warning, the 55-number OE-cross-reference manifest published on the listing (the densest of the Cluster B chain), the Amazon Creators API Tier A cache (research/api-cache/static/B0C4TXBKLS.yaml), and the same atom-substrate research approach used for the WOLLAHS Cluster B canary and the Queencar 2013-2018 sibling. We do not run a physical Cummins test bay. What we do is read every verified-purchase Amazon review on this SKU, weight the 250K-mile endurance signal against the 6-month wash-out case, cross-reference the install-discipline protocols (maximum-flow position, antifreeze blowout, lever-to-the-rear) against the broader Cluster B install community, and triangulate against the Cummins 6.7L VGT failure literature.

The limits are explicit. We cannot independently verify the B.ZSSY factory's QC discipline beyond what the verified-buyer pool documents. We cannot validate the seller's specific Amazon listing identity across the entire counterfeit-risk window — buyers should run their own seller-verification protocol before clicking through. The 9 hash-mismatched atoms in the 2026-05-12 refresh window are queued for re-extraction; the editorial verdict on this SKU does not depend on them.

B.ZSSY Calibrate Kit Decision Questions

Do turbo actuators need to be calibrated?

Yes. Every VGT actuator on the Cummins 6.7L requires calibration after install — the ECM needs to learn the position-sensor zero point and the full sweep range so the closed-loop boost control can drive the vanes accurately. The B.ZSSY calibrate kit bundles a Turbine Calibration Module for that purpose. Skip the calibration step and the truck either runs in limp-home mode or throws a U010C code within the first 100 miles. The City Diesel actuator is the unusual exception — it self-sweeps on every key-on, so no separate calibration session is required.

Does a turbo actuator need to be programmed?

Programming and calibration are adjacent terms for the same Cummins 6.7L workflow. The bundled programmer module establishes the ECM-to-actuator handshake and writes the calibration. On 2013-2017 Ram chassis the bundled module completes the workflow in the documented five-minute window. On 2018+ chassis the bundled module needs a security-bypass OBD2 cable purchased separately; without it the programmer module hangs and locks the actuator in calibration mode. The "calibrate kit" naming on the B.ZSSY listing emphasizes the bundled programming hardware.

Does a VGT actuator need to be programmed?

On the Cummins 6.7L specifically, yes — programming the new actuator against the ECM is mandatory for the closed-loop boost control to function. Unprogrammed actuators run open-loop and produce inconsistent vane positions across the throttle range, which kicks U010C lost-communication codes and creates the no-boost / no-Jake-brake drivability state. Two alternative programming paths exist if the bundled B.ZSSY module fails: AlfaOBD via Bluetooth ELM327, or an Autel scan tool running the OEM Ram service routine.

What scan tool can calibrate a turbo actuator?

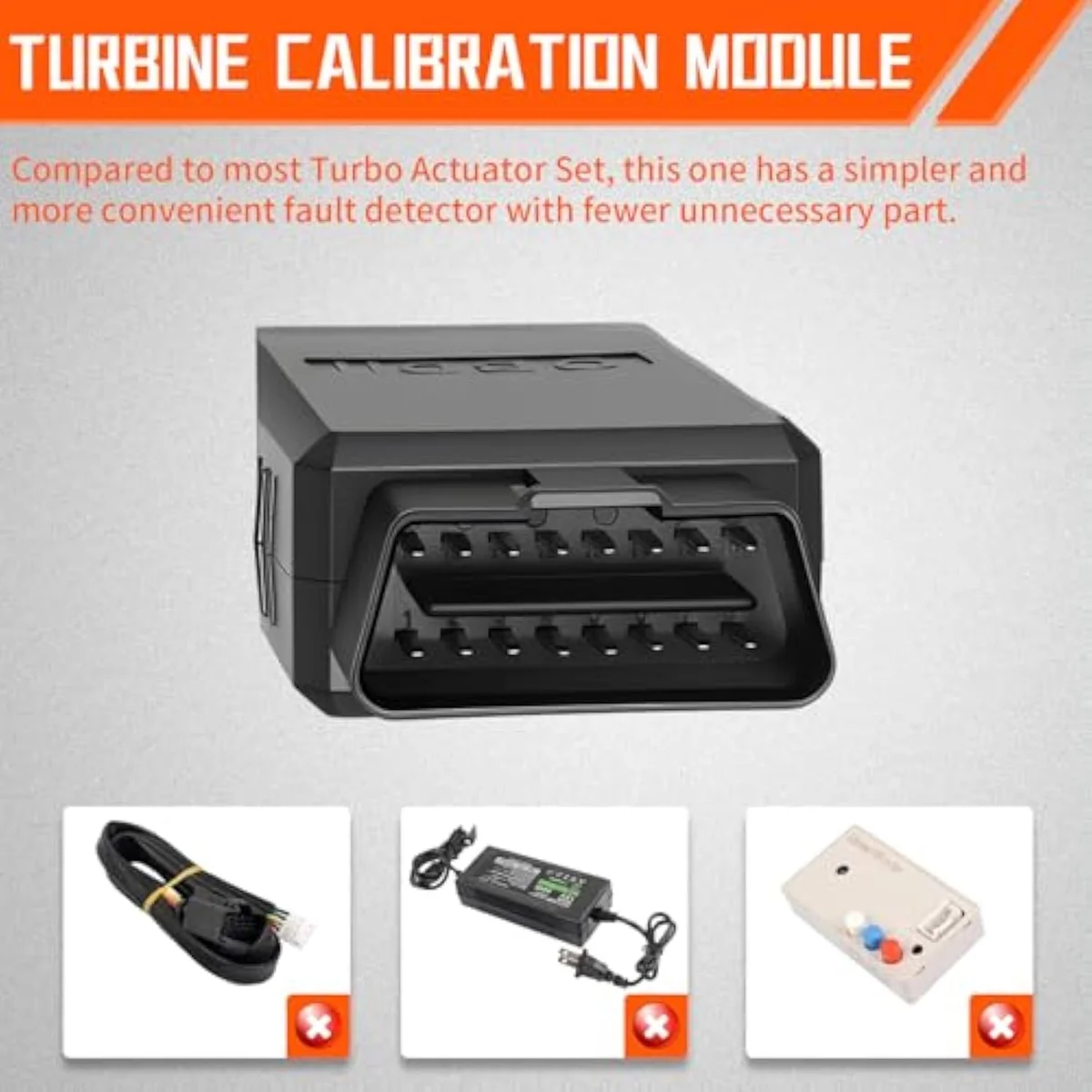

The B.ZSSY listing bundles its own Turbine Calibration Module that runs against the ECM through the OBD2 port. The Synapse Auto Turbo Actuator Calibration Tool for HE351VE is documented as a third-party alternative at ~$150. Other Cummins-compatible scan tools that complete the calibration workflow include AlfaOBD, Autel, Bully Dog GT, Edge Insight CTS3, and the OEM-spec DRB-III at the Ram dealer. The single hard requirement: the tool must support the post-2018 security-bypass handshake when running on 2019+ chassis.

How to tell if turbo actuator is bad 6.7 Cummins?

Pull the codes first. A U010C lost-communication code paired with loss of turbo boost and inoperative Jake brake is the canonical signature. P0299 under-boost and P229F over-speed are adjacent codes. The mechanical signal that confirms it is the actuator and not the cartridge: the actuator drive motor is silent during a key-on self-test cycle (a healthy unit cycles audibly for two to three seconds). If the motor stays silent and the codes are present, the actuator is bad. The turbo lever-rotation pre-install check rules out cartridge-side carbon binding before the new actuator goes in.

Check Price on Amazon · or use our Turbo Replacement Cost Estimator to size the calibrate-kit entry tier against the City Diesel and Fleece tiers.

Cluster B Calibrate-Kit Watchpoints

Three field signals would shift the editorial weight on B.ZSSY versus the WOLLAHS / Queencar Cluster B siblings. First, additional long-window (200,000+ mile) endurance reports beyond the single 2026 update — the current 250K data point is the longest in the atom set but is one chassis. Second, a published Detector-accessory specification that distinguishes the bundled diagnostic hardware from the Turbine Calibration Modules bundled on the canary and Queencar SKUs. Third, a manufacturer revision that adds the security-bypass cable to the bundle rather than the separate-Amazon-purchase model. Until those land, the B.ZSSY SKU is the calibrate-kit entry-tier pick for buyers willing to run the maximum-flow-position install sequence and the antifreeze-blowout protocol; the WOLLAHS canary is the safer default for buyers who want the broadest fitment statement and the bundled-tool simplicity.

The next Cluster B review opens the cartridge CHRA layer (Holset HE351VE) — the next layer up the diagnostic decision tree. Buyers whose lever-rotation pre-install check fails, whose mileage exceeds the Geno's Garage 200,000-mile cutover, or whose verified Detector reading shows cartridge-side carbon binding route directly to the cartridge CHRA layer rather than continuing in the actuator tier.
