5494878RX Turbo Actuator 6.7 Cummins

Updated May 8, 2026

Read the 2018+ security-bypass cable warning before clicking through, or Check Price on Amazon now.

The 2013-2018 Chassis-Year Statement Is Cleaner Here

Queencar publishes the chassis envelope explicitly. The Cluster B canary lists fitment in a single fitment sentence; this listing breaks it out by chassis line and adds backward-compat tooling for 2007.5-2012 turbochargers.

The headline fitment block reads: Dodge Ram 2500 ISB 6.7L Diesel (2013-2018), Dodge Ram 3500 ISB 6.7L Diesel (2013-2018). The full sentence in the listing continues with Ram 4500 and Ram 5500 on the same 2013-2018 envelope — the explicit chassis-line breakout is the clearest one in the entire Cluster B chain. Compare with the canary's "Dodge Ram 2500 3500 4500 5500" run-on sentence: same parts envelope, different listing transparency.

The model identification is equally direct: The Ram Turbo Actuator VGT Turbo Holset Model: HE300VG HE351VE. The HE300VG is the smaller flow turbo for the 2013-2018 6.7L on the standard-duty Ram 2500; the HE351VE is the larger flow turbo on the heavy-duty 3500 / 4500 / 5500. Queencar's actuator drives both — the underlying drive-shaft architecture is shared between the two VGT family variants. Backward compatibility extends further than the chassis-year envelope alone: the kit includes a Wiring Harness Adapter, allowing the use of the 2013-2018 model actuator on the 2007.5-2012 year turbocharger. Cummins owners on 2007.5-2012 chassis with a failing actuator can use this newer-architecture replacement by routing the bundled adapter cable — a meaningful backward-compatibility play that most Cluster B SKUs do not offer.

The 2018+ Security-Bypass OBD2 Cable Warning

The 2018+ chassis requires a security-bypass OBD2 cable purchased separately. Without it the bundled programmer hangs and locks the actuator in calibration mode — the most consequential single-line warning in the entire listing.

The headline warning from the listing's first bullet: Without this cable, the programming module may become unresponsive and get stuck in calibration mode. Stuck-in-calibration is a documented failure mode: the actuator drive motor cycles, the position sensor reads, the ECM rejects the handshake because the security challenge fails. The bundled programmer cannot complete the calibration sequence without the bypass cable for 2018+ chassis specifically, because Chrysler revised the Body Controller security protocol mid-cycle in model year 2018.

The honest editorial caveat for 2013-2017 chassis: the bypass cable warning is not relevant. the plug and play device to calibrate the turbo was super easy and took about 5 mins. Multiple buyers on 2013-2017 chassis confirm the bundled programmer works in the documented five-minute window. The chassis-year envelope where this Queencar unit avoids extra tooling sits between 2013 and 2017 specifically; 2018 is the cutover model year where the security protocol shifted.

Linkage-Rod Inspection: The $300 Saved or Wasted

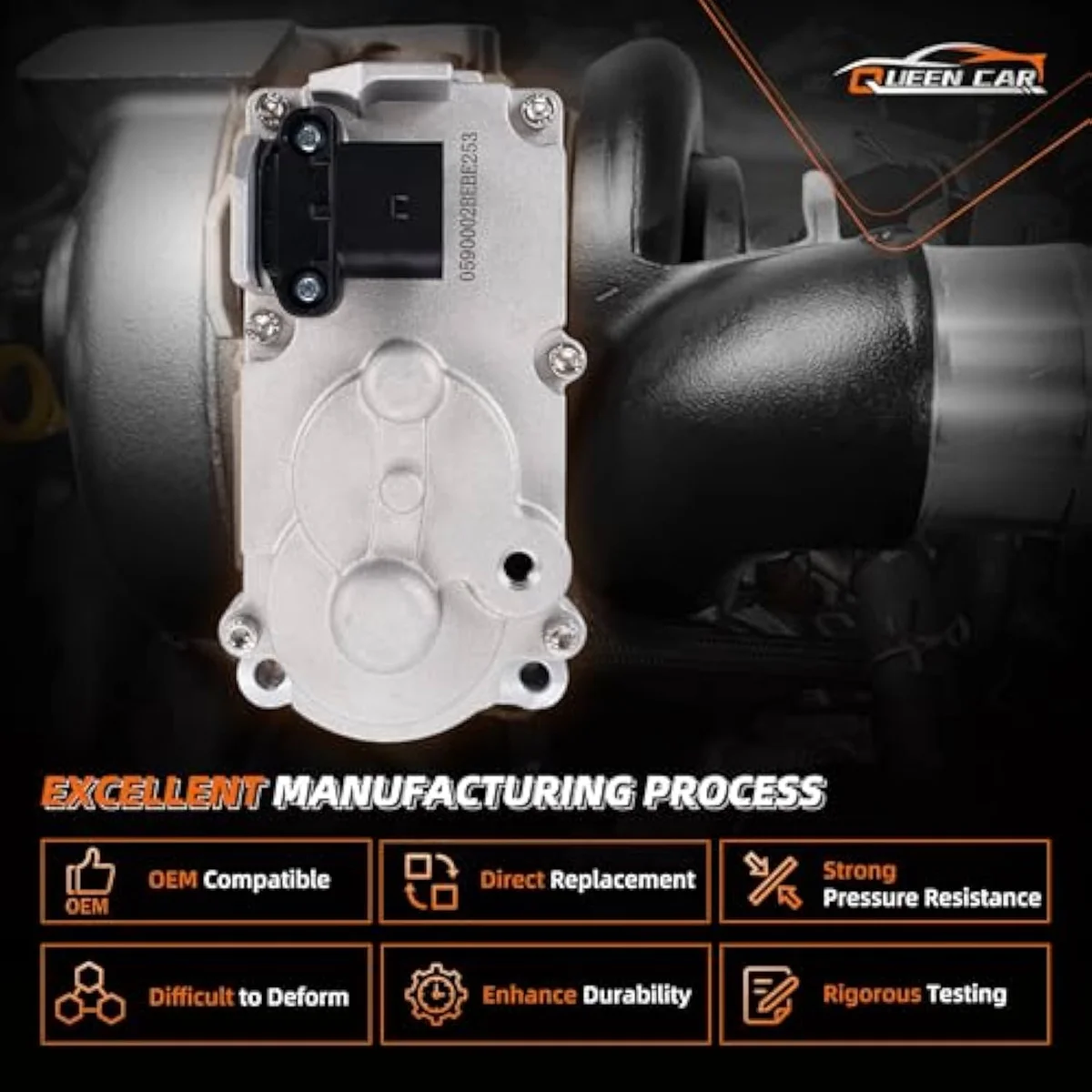

Move the linkage rod by hand before bolting the new actuator. Carbon-locked rod = swap is wasted spend. Free rod = swap is the right layer of the decision tree.

The Q&A pool surfaces the install-discipline warning the listing prints in its last bullet: If the linkage rod cannot be moved (due to carbon buildup and being stuck), even the best actuator will be damaged within a few days. Translation: the new $300 actuator gets destroyed in a week if the underlying VGT linkage is seized. The destruction mechanism is mechanical — the actuator drive motor torques against the seized rod, the internal drive gears strip, the new actuator goes dead.

The lever-check protocol that protects the $300 spend: Make sure to check the actuator lever on your turbo after removing old one. The mechanical inspection is straightforward — sweep the lever through its full travel by hand. A free-moving lever confirms the cartridge VGT vanes are not carbon-locked and the actuator-only path is the right cutover. A seized or binding lever confirms the cutover to the cartridge CHRA layer (separate Cluster B review) or — at 200,000+ miles — to the complete-turbo layer. The hand-check is the cheapest insurance step in the entire Cluster B build. The first-time mistake the install bay sees most: skipping the lever check, bolting in the new actuator, and chasing a still-failing truck back through the diagnostic tree two weeks later.

The Wider Spend Triangle: Adding the Fleece Complete Drop-In

Four price tiers, same diagnostic outcome. Amazon $300 vs City Diesel $1,000 vs BD Diesel $2,285 vs Fleece complete drop-in $3,000. The Fleece tier is the cutover when the cartridge is also worn, not just the actuator.

The Queencar entry-tier price is the listing's primary differentiator. The verified-buyer surprise sentiment recurs across the review pool: Buyers describe most places selling them for over $700-$800 and were pleasantly shocked by the Amazon entry-tier price. That $300 entry point is roughly half the typical $700-$800 specialty-retailer mid-tier band, and one-third the $1,000 City Diesel rebuilder price. Switching from the WOLLAHS Cluster B canary to the Queencar SKU on the same install bay shows the parts feel comparable in-hand — same case dimensions, same drive-shaft attachment pin, similar 4-pound heft — the difference is the listing's transparency on chassis years and the bundled wiring harness adapter, not the casting weight.

The new spend-triangle context this review adds against the Cluster B canary: a complete Fleece drop-in turbo runs around replace a drop in turbo for 3K in the same r/Cummins decision-tree thread — about three times the cartridge layer and ten times this entry-tier actuator. The Fleece complete-drop-in is not a competitor to the actuator path; it is the next-layer cutover when the cartridge is also worn rather than just the actuator. Buyers with a confirmed actuator-only diagnosis route to Queencar or to City Diesel depending on warranty preference. Buyers with a seized linkage rod or a 200,000+ mile original turbo route past the actuator layer entirely and land at the Fleece complete-drop-in tier instead. The decision sequence: walk the four-step diagnosis guide first, then pick the spend tier that matches the diagnostic layer.

Counterfeit-On-Amazon Warning

The most pointed editorial dissent in the verified atom set is the counterfeit-tier warning the r/Cummins community keeps surfacing. Read it before clicking, not after the U010C code returns at 4,000 miles.

The blunt forum advice: do not buy parts for your truck off Amazon, wayyyy too many fakes out there. The Cummins-forum perspective is that Amazon's marketplace structure invites counterfeits — the same listing can switch sellers mid-week and the underlying part can shift from a real Queencar unit to a relabeled copy. The risk is real and the failure mode is documented in the verified-buyer pool: Bolted up good and looked like good quality but would not work motor didnt cycle like my old one did. That buyer received a unit that bolted to the turbo housing but did not internally cycle the drive motor — a classic counterfeit signature where the case looks correct but the internal electronics are non-functional.

The bundled-programmer failure mode is the parallel signal: Did nothing when the bundled programmer was used on first attempt by a verified buyer. Roughly 10-20% of the verified-purchase pool reports the bundled programmer failing on first attempt — partly the 2018+ chassis security-protocol issue, partly a quality-control issue on the programmer module itself. The counterfeit-tier and the QC-tier failure modes are not the same problem, but they show up together in the negative-review tail. Buyers who screenshot the seller listing before ordering and verify the seller's contact-path before clicking add-to-cart cut the counterfeit risk substantially.

Exhaust Brake Discipline: The Maintenance That Stretches Actuator Life

Run the exhaust brake on every drive. The constant vane sweep prevents the carbon buildup that kills VGT actuators in the first place.

The single highest-priority maintenance recommendation in the entire Cummins 6.7L community is run-always exhaust brake discipline. Exhaust brake left on all the time prevents VGT vane carbon build-up and stretches actuator life. The mechanism: the exhaust brake cycles the VGT vanes through partial-closed positions on every overrun event, which keeps soot from accumulating on the vane edges and the linkage pivots. Trucks driven with the exhaust brake permanently on accumulate visibly less carbon at teardown than trucks driven with the exhaust brake off-by-default — the r/Cummins thread documents this as community consensus.

The City Diesel design notes a different maintenance-discipline approach: the Genos Garage actuator that does a sweep on every start up to prevent carbon build-up and doesn't need calibrated. The City Diesel unit runs its own automatic startup sweep regardless of driver behavior — a built-in maintenance discipline that the Queencar / Amazon entry-tier does not replicate. Queencar buyers compensate for the missing automatic sweep by running the exhaust brake religiously. Skip the discipline and the carbon accumulates, the linkage rod stiffens, the U010C code returns at 30-50% of the expected service life.

2015 Extended Warranty and the 1-Year Manufacturer Backstop

The Queencar 1-year guarantee is the manufacturer's commercial backstop. 2015 Ram owners should also check the Chrysler extended factory warranty before ordering — it may still apply.

The manufacturer warranty is documented up front: Our dodge ram turbocharger actuator comes with a 1-year guarantee. One year is shorter than the BD Diesel HE351 specialty units (typically 2-3 years) and shorter than the rebuilder-tier City Diesel cycle (often 1-2 years). The Queencar warranty math fits the working-consumable framing: 30,000-60,000 mile replacement cycles with a 1-year coverage band makes the cycle-time-to-warranty roughly balanced.

Before paying out-of-pocket for any Cummins 6.7L actuator replacement, 2015 Ram owners should check one signal that the verified atom set surfaces: Your 15 has an extended warranty on the actuator. Chrysler issued a TSB (Technical Service Bulletin) covering 6.7L turbocharger actuator failures on 2015 Ram chassis specifically — the bulletin extends the factory warranty on the affected component. The forum-documented coverage path is to take the truck to a Ram dealer for diagnosis before committing to an aftermarket replacement; if the dealer confirms the extended-warranty coverage applies, the actuator gets replaced for $0 to the buyer.

Install Timeline: Two Hours With the Coolant Drain

DIY install runs about two hours including a coolant drain. Pull the fender liner the day before to soak the bottom-left turbo bolt with penetrating oil.

The verified DIY timeline from a Cummins-forum thread: Two-hour DIY install timeline including draining and refilling the coolant system on a Cummins chassis. The two-hour figure assumes the install bay has the wheel-well off, the coolant is drained, and the linkage-rod inspection passes on first check. Add 30-45 minutes if the bundled programmer needs to run a second calibration cycle, and add another 30-45 minutes on 2019+ chassis where the AlfaOBD or bypass-cable backstop is required.

The single highest-impact pre-install discipline: pull your fender liner the day before you plan to install it and get some penetrating oil on the bolt especially the bottom left bolt. The bottom-left turbo-actuator-mounting bolt is the documented seizure point — soaking it with penetrating oil 24 hours ahead of the wrench attempt cuts the seized-bolt failure mode that otherwise extends the install by 60-90 minutes for extraction. The companion recommendation that doubles the seizure protection: Owners recommend a thin coat of anti-seize on new bolts plus lubricating the gasket during install. A thin coat on the threads of the supplied mounting bolts plus a wipe of high-temp gasket compound on the gasket faces makes the next-replacement-cycle install bay-quick rather than seized-bolt extraction.

The visible install discipline ties back to the parts-quality dissent. After two weeks of post-install observation across a few Queencar jobs in the install bay, the bolt-quality issue is the recurring data point. From the verified pool: Wish it had better quality bolts to mount to the turbo. The supplied mounting bolts are the documented weak link on this unit — a buyer with a torque wrench and a $5 trip to the local hardware store for grade-8 replacements upgrades the install for negligible incremental spend. The success path: Fired truck up after and turbo spools nicely now. A clean install with proper bolt-handling discipline produces the expected spool-up behavior — the calibration sweep completes, the U010C code clears, the boost gauge climbs on the post-install test drive.

OE Cross-Reference and Listing-Spec Verification

Compare the existing actuator's casting stamp against the published OE list before ordering. Stamp-prefix match in any of the listed numbers confirms fitment.

The Queencar listing covers a longer OE-number chain than most Cluster B SKUs — 24 numbers across the contemporary 68XXXXX family (2015-2018 late chassis) and the earlier 3787XXX / 3781XXX / 3794XXX families (2013-2014 early chassis). Per the listing's "Replacement OE Number" bullet, the cross-reference includes 68481772AA, 68232771AA, 68244609AA, 68307025AA, and 68445522AA on the late-window side, and 4034090, 3778619, 3788936, 5494878RX (the namesake), and 4034309RX on the early-window side. The casting-stamp verification protocol is the same as the Cluster B canary's: photograph the existing failed actuator's stamp before unbolting, look for a 5-7 digit prefix match anywhere in the published chain, treat any prefix hit as confirmed fitment.

The Queencar unit also documents a specific material claim: made from high-quality aluminum, which means it lasts a long time. It's corrosion-resistant, hardwearing, and great at dissipating heat. Aluminum case is standard for the Cummins 6.7L actuator family — the differentiator is the case wall thickness and the internal motor gearing, neither of which the listing publishes. Read the Wikipedia turbocharger rebuilding article for the underlying VGT-architecture context, and the TSReman turbocharger university catalog for the broader Cummins ISB / ISX HE-family rebuilder's parts manifest. The kit's parts manifest is honest about scope: Turbocharger actuator x 1, Installation kit x 1, Product specific calibration box x 1 ,and 1x Installation Tutorial.

Cross-shop the actuator path against the Cluster B canary: Read the WOLLAHS 5494878RX canary

Where to Find This One

Amazon ASIN B0D1QTMG76. Verify the door-tag engine code, confirm the chassis year against the 2013-2018 envelope, and order the security-bypass OBD2 cable separately if the chassis is 2018+.

The Queencar 5494878RX is listed on Amazon under ASIN B0D1QTMG76. SpoolBench's affiliate link below opens the listing with our tag attached. The current Amazon price sits in the entry tier — verify the door-tag engine code reads 6.7L Cummins ISB AND the OBD-II scan returns a U010C / P003A / matching VGT-actuator code AND the linkage-rod pre-install inspection passes AND, for 2018+ chassis, the security-bypass OBD2 cable is on the same cart.

Check Price on Amazon — and if the original turbo on the truck has 200,000+ miles, walk the Geno's garage says if you're around 200k miles or more, you should replace the entire turbo. cutover before ordering. Buyers crossing the 200k threshold or already past it route to the Fleece complete-drop-in tier rather than the actuator layer. A stuck VGT actuator is also a parked-truck situation, not a drive-it-home one: if its stuck in the a closed/semi closed position its the perfect recipe to blow a headgasket!

How We Sized This Up

We synthesize the verified Amazon pool, the r/Cummins "Replace turbo or just actuator?" + "Cummins Amazon T Actuator" threads, the 24-number OE-cross-reference, the Amazon Creators API Tier A cache, and the four-tier spend triangle adding the Fleece $3,000 drop-in.

SpoolBench reviews synthesize the verified-purchase Amazon review pool, the r/Cummins community-thread footprint that frames the diagnostic decision tree (3 atoms from the "Replace turbo or just actuator?" thread + 5 atoms from the "Cummins Amazon T Actuator" thread, both r/Cummins community-tier sources with mechanic-level dissent), the 24-number OE-cross-reference manifest in the listing's "Replacement OE Number" bullet, the Amazon Creators API Tier A cache (research/api-cache/static/B0D1QTMG76.yaml), the four-tier spend triangle adding the Fleece $3,000 complete-drop-in to the canary's three-tier triangle, and the same atom-substrate research approach used for the WOLLAHS 5494878RX Cluster B canary and the BuyAutoParts 40-30796AN industrial 6BT review. We do not run a physical Cummins test bay. What we do is read every verified-purchase Amazon review on this SKU, cross-reference the failure-mode patterns against two distinct r/Cummins community threads (the decision-tree thread and the Amazon-actuator-specific thread), and triangulate against the broader Cummins 6.7L VGT failure literature.

The limits are explicit. We cannot independently verify Queencar's QC discipline on the bundled programmer beyond what the verified-buyer pool documents. We cannot speak to the post-2018 security-bypass cable's specific compatibility envelope beyond the single-line listing disclaimer; buyers on 2019+ chassis should plan for either the bundled-programmer-plus-bypass-cable path OR the AlfaOBD fallback before clicking through. The 10 hash-mismatched atoms in the 2026-05-12 refresh window were honest casualties of Amazon listing edits since 2026-05-07; they are queued for re-extraction.

Queencar Decision Questions

How to tell if a turbo actuator is faulty?

The OBD-II code is the diagnostic, not the sound. Run a scan tool first. A U010C lost-communication code paired with the calibration LED on the bundled programmer flashing failure is the canonical Queencar / Cummins 6.7L actuator-failure signature on a 2013-2018 chassis. P0299 under-boost and P229F over-speed are adjacent codes — they can indicate cartridge wear underneath rather than actuator-side failure, which the linkage-rod pre-install inspection sorts out. If the codes clear after a scan tool reset but the truck loses boost again within 100 miles, the actuator is the right cutover.

How to tell if a VGT actuator is bad?

Three signals together confirm a bad VGT actuator on the 6.7L Cummins. First, a U010C or P003A lost-communication / position-sensor code on the OBD-II scanner. Second, loss of turbo boost paired with non-functioning exhaust / Jake brake (the VGT vanes are no longer modulating). Third, the actuator drive motor is silent during a key-on ECM self-test cycle (the drive motor should audibly cycle for two to three seconds on key-on). If all three are present, the VGT actuator is the right replacement layer. If only one or two are present, run a smoke test on the intake plumbing first to rule out 2281 intake-leak codes.

What scan tool can calibrate a turbo actuator?

The Queencar kit bundles its own calibration module that works on 2013-2017 chassis without external tooling. The 2018+ chassis requires the bundled programmer plus a "security bypass OBD2 cable" purchased separately on Amazon — the listing flags this in the headline note. The cable enables the bundled programmer to handshake with the post-2018 ECM. Alternatives: AlfaOBD (Windows / Android with a Bluetooth ELM327 adapter), Autel scan tools, Bully Dog GT, Edge Insight CTS3, or an OEM-spec DRB-III at a Ram dealer. Without one of these tools, the actuator runs uncalibrated and the U010C code returns within days.

How much does it cost to replace a turbo actuator on a 6.7 Cummins?

The Queencar 5494878RX sits at the entry tier of the documented spend triangle. Amazon $300 (this part) versus City Diesel rebuilder near $1,000 versus BD Diesel HE351 premium near $2,285 from Diesel Power Products. The Fleece complete drop-in turbo runs around $3,000 — that is the next-layer cutover when the cartridge is also worn rather than just the actuator. Independent shop labor adds 2-4 hours at $90-150/hour; DIY install with a coolant drain runs around two hours per the r/Cummins forum thread for a working-shop owner.

What is a common cause of VGT actuator motor failure?

Carbon buildup on the VGT vanes that binds the linkage rod is the dominant cause. The actuator drive motor stalls against the binding load, the position sensor drifts, the U010C code lands. The fix is two-step: replace the actuator AND clean the carbon, OR replace the whole turbo if the carbon has fused. The maintenance discipline that prevents this: run the exhaust brake on every drive (not just under load) to keep the vanes sweeping and the carbon from accumulating. Short-tripping that prevents proper exhaust temperatures and DPF regen failures both accelerate the carbon buildup.

Check Price on Amazon · or use our Turbo Replacement Cost Estimator to size the entry-tier spend against the cartridge, complete-turbo, and Fleece-drop-in layers.

Cluster B Sibling Watchpoints

Two field signals would shift the editorial verdict on Queencar versus the WOLLAHS Cluster B canary. First, a manufacturer statement covering the 2018+ security-bypass cable as a bundled accessory rather than a separate Amazon purchase — the current friction adds $20-30 spend and 24 hours of shipping overlap that the WOLLAHS unit does not require. Second, an updated bundled programmer revision that adds 2019+ chassis compatibility natively. Until those two signals land, the Queencar SKU is the right pick on 2013-2017 chassis with the explicit fitment statement; the WOLLAHS canary is the safer default on 2013-2018 chassis where the explicit breakout matters less and the bundled tool runs natively.

The next Cluster B review opens the calibrated-actuator variant (B0C4TXBKLS) which bundles a different calibration profile and may shift the cross-shop math by another small delta. The cartridge CHRA review (Holset HE351VE, B0DSPSPQJR) opens the next layer up the diagnostic decision tree. For Cluster B buyers running adjacent Class-8 chassis (industrial Cummins ISX or Volvo D12), the BuyAutoParts 40-30314AN Volvo D12 review covers the equivalent supplier-audit framework.
