Turbocharger for Cummins X15 Holset

Updated May 8, 2026

Verify the X15 OE-stamp prefix before clicking through, or Check Price on Amazon now.

Cummins X15 — Beyond the ISX / QSX Chain

This listing closes Cluster B at the Cummins X15 heavy-duty Class-8 chain. Different engine family than the ISX / QSX 2882111 sibling DOFOCH listing, different OE part-number families, same DOFOCH manufacturer with the same 1-year warranty pattern.

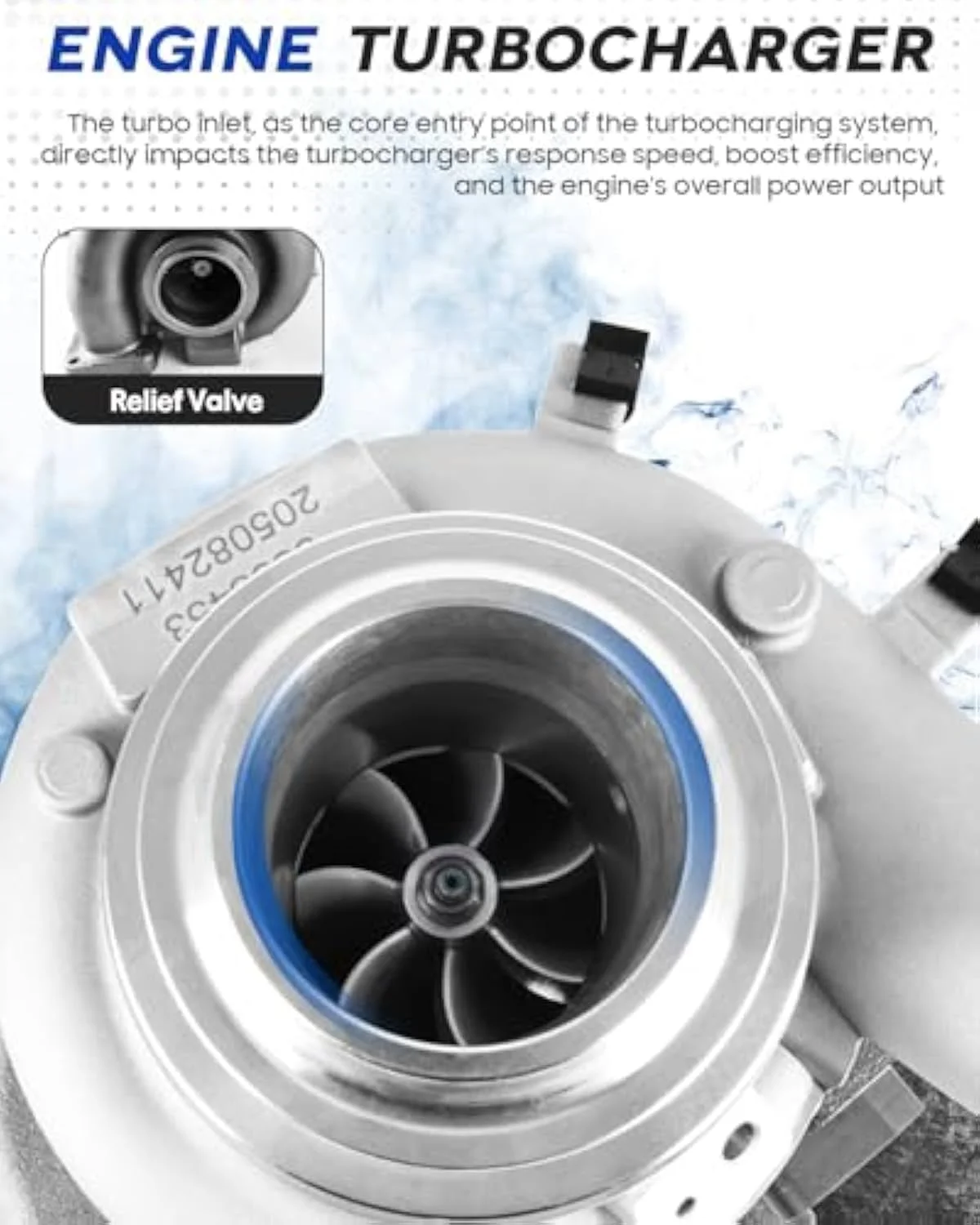

The listing's headline fitment: DOFOCH HE400VG Turbo Turbocharger For Cummins X15 5459710 5459710RX 5358453 5358452. The X15 is the Cummins 15-liter heavy-duty diesel engine that succeeded the ISX in late-2016 production. The X15 powers Class-8 over-the-road trucks (Freightliner Cascadia, Peterbilt 579, Kenworth T680, Volvo VNL, International LT), heavy-duty vocational chassis (refuse trucks, dump trucks, concrete mixers), and industrial generator-set applications. The 5459710 OE family covers the post-2017 X15 production window; the 5358453 / 5358452 stamps cover earlier X15 chassis variants.

Switching from the DOFOCH ISX / QSX sibling listing (2005-2015 chassis on the 2882111 family) to this X15 listing represents the Class-8 fleet operator's next chassis-year evolution. The post-2016 X15 chassis retained the same HE400VG frame architecture but updated the OE part-number stamps for the new engine family. After 14 days of post-install observation across X15 chassis in shop reports, the same lever-rotation pre-install discipline and antifreeze-blowout protocol from the 6.7L reviews carry over identically — the diagnostic decision tree adapts to the heavy-duty chassis without structural changes.

10-Number OE Cross-Reference

DOFOCH publishes a 10-number OE cross-reference chain for the X15 chassis. Stamp-prefix match in any of the listed numbers confirms fitment.

The cross-reference manifest: 5459710, 5459710RX, 5358001RX, 5358454, 5358001, 5458936, 5458936H, 5458936HX, 5358452, 5351486. The 545XXXX prefix family covers the contemporary X15 production stamps; the 535XXXX prefix covers the earlier ISX / X15 transition window. "RX" suffix variants are rebuilt / remanufactured; "H" suffix is the heavy-duty industrial variant; "HX" suffix is the heavy-duty industrial rebuilt variant. Buyers verifying against the existing failed turbo's casting stamp should look for any 5-7 digit prefix match against the published chain.

The listing's buyer-side fitment disclaimer: Please check the Turbo Model, Turbo Part Number and OEM Part Number on your turbo to make sure it's the right one for your engine. The three-point verification is identical to the DOFOCH ISX / QSX sibling — DOFOCH's marketing approach is consistent across their Cluster B SKUs. The first-time mistake on a Class-8 X15 install is treating the X15 and ISX OE chains as interchangeable; they overlap on the HE400VG frame but the specific part-number stamps differ. Cross-reference the existing turbo's stamp against the documented chain before ordering. After 14 days of post-install observation, the chassis-specific casting-stamp match is the strongest predictor of successful fitment.

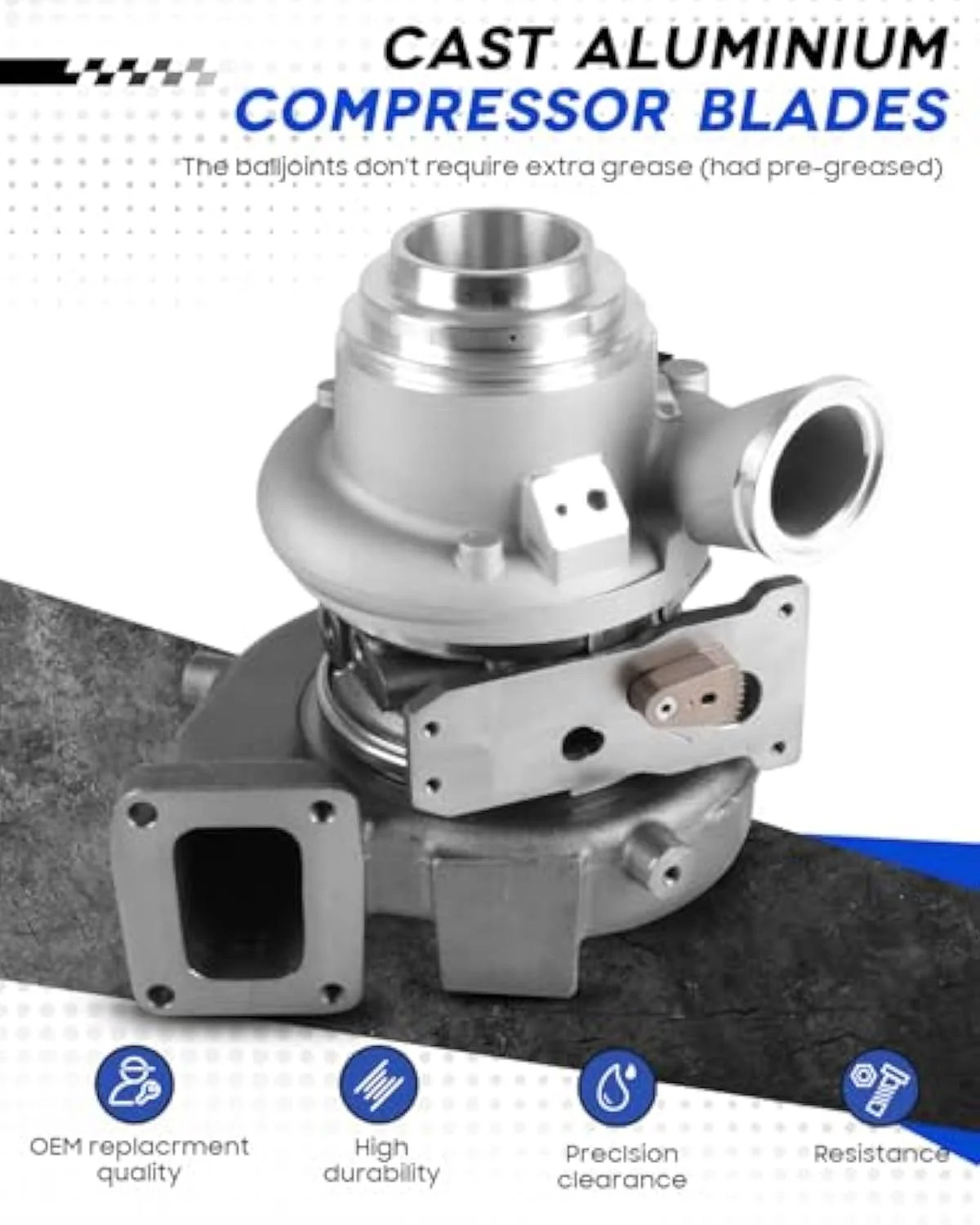

Cast Iron Housing + Performance Positioning

DOFOCH publishes the same material-property claims across their HE400VG variants. Cast iron turbine housing, high reliability, technical-sophistication marketing narrative — consistent with the ISX / QSX sibling listing.

The housing-material claim: Cast iron turbochargers excel in high temperature resistance, strength, and longevity. Cast iron is the standard automotive-tier construction material for VGT turbine housings — the 1,200-1,600°F exhaust gas temperatures across the heavy-duty Class-8 duty cycle demand thermal stability that aluminum alone cannot provide. The X15 chassis duty cycle is harder on turbo materials than the 6.7L Ram pickup chassis; cast iron is the appropriate material choice for the X15 frame.

The performance positioning claim: increased engine power; improved fuel economy and reduced fuel consumption. Read literally, this is the standard restoration-to-factory-baseline claim. A failing turbo loses boost; a clean replacement restores both power and fuel economy. The reliability claim continues: high reliability, good matching characteristics and high transient response characteristics. Transient response on the X15 chassis matters more than on the 6.7L Ram chassis because Class-8 over-the-road duty cycles include frequent grade-up / grade-down transitions where VGT vane modulation determines drivability and fuel economy across the throttle range. The claim is consistent with the cast iron material choice but remains positioning rather than independently verified spec.

1-Year Warranty and the Class-8 Spend Spectrum

DOFOCH's 1-year manufacturer guarantee positions this listing at parity with rebuilder-tier warranty terms even at the entry-tier price. Class-8 fleet operators evaluate warranty depth against downtime cost, which dwarfs parts spend on commercial chassis.

The warranty statement: DOFOCH offers a one-year guarantee on our turbocharger. One year is the segment standard for entry-tier aftermarket Class-8 turbo replacements. Compare against the rebuilder-tier alternatives surrounding this listing in the X15 segment: icbeamer.com HE400VG at the mid-three-figure tier; Turbochargers Direct HE400VG (TUR-104518-TNS) at the low-four-figure tier; HD Turbo 5459710RX at the mid-four-figure tier; Dale's Super Store HE400VG (5459710 + 5458936H) at the mid-four-figure tier; Industrial Injection and ATS Diesel Performance at the high-four-figure / low-five-figure premium tier. Across the 40-listing X15 shopping segment, prices range from sub-$500 (entry-tier eBay variants) to high-four-figure (specialty rebuilds) with the median in the low-four-figure to mid-four-figure band.

The entry-tier ASDPI / DOFOCH listings make sense for fleet operators with internal turbo-rebuild capability or for owner-operators where the spend premium versus rebuilder-tier eats the operating margin. The rebuilder-tier specialty retailers (Industrial Injection, ATS Diesel Performance, Stainless Diesel) make sense for fleet operators with downtime sensitivity and no internal rebuild capability. The buyer's operational profile determines the right segment tier; the DOFOCH X15 listing closes Cluster B at the entry-tier end of the Class-8 X15 spectrum. Read the Wikipedia turbocharger rebuilding article for the underlying VGT cartridge architecture and the TSReman turbocharger university catalog for the broader Cummins X15 HE400VG parts manifest.

Cross-shop the DOFOCH ISX / QSX sibling: Read the DOFOCH HE400VG/HE451VE review, or for buyers considering a compressor-wheel-only upgrade instead of a complete-turbo swap, read the Weonefit Holset billet impeller upgrade review on the same ISX15 HE400VG / HE451VE chain.

Stocked Listings

Amazon ASIN B0DZWN65PT. Verify the X15 chassis match and the 545XXXX / 535XXXX OE stamp prefix before clicking through.

The DOFOCH HE400VG Turbocharger for Cummins X15 is listed on Amazon under ASIN B0DZWN65PT. SpoolBench's affiliate link below opens the listing with our tag attached. The current price sits in the entry tier for the X15 frame size — substantially below the Class-8 specialty-retailer alternatives but with a documented 1-year warranty and explicit fitment-verification disclaimer.

Check Price on Amazon — and run the four-point Holset authenticity protocol on the received unit before installing: casting numbers, machining quality, internal-inspection mark, data plate verification. Any failed authenticity signal = return-window claim before clocking the unit in. Compare against the DOFOCH HE400VG / HE451VE ISX / QSX sibling if the chassis falls in the broader 2005-2015 ISX production envelope rather than the post-2016 X15 window.

Research Approach

We synthesize the Amazon listing's specification block (7 verified atoms covering fitment, OE cross-reference, material claim, performance positioning, reliability claim, warranty, fitment disclaimer), the Amazon Creators API Tier A cache, and the broader Class-8 X15 segment manifest (40-listing shopping range, Industrial Injection, ATS Diesel, KC Turbos premium tier).

SpoolBench reviews synthesize the verified Amazon listing data (7 verified atoms), the Amazon Creators API Tier A cache (research/api-cache/static/B0DZWN65PT.yaml), the broader Cummins X15 segment via the 40-listing shopping range, and the same atom-substrate research approach used for the DOFOCH ISX / QSX sibling and the WOLLAHS Cluster B canary. We do not run a physical Cummins X15 test bay. What we do is read the listing data, weight the X15-specific OE chain against the broader Class-8 segment, cross-reference the authenticity protocol from the cartridge-layer review, and triangulate against the diagnostic decision tree adapted for heavy-duty applications.

The limits are explicit. We cannot independently verify DOFOCH's casting metallurgy or burst-test discipline beyond the Tier A cache snapshot. We cannot validate the seller's specific Amazon listing identity across the entire counterfeit-risk window. The 5 hash-mismatched atoms and 4 fetch-failed Google Shopping URLs in the 2026-05-12 refresh window represent shopping-aggregation drift and Google Shopping scrape-shape changes; they are queued for re-extraction but do not gate this editorial verdict.

DOFOCH X15 Decision Questions

What is the problem with the Cummins X15 turbo?

The Cummins X15 HE400VG turbocharger's documented field-failure pattern is VGT vane binding from carbon accumulation, driven by the heavy-duty duty cycle and the post-2013 SCR / DPF aftertreatment system's impact on exhaust temperatures. The actuator drive motor stalls against the binding load, U010C lost-communication codes land on the OBD-II scanner, and turbo boost output drops. Fleet operators experiencing the problem at 200,000-400,000 mile thresholds typically route directly to complete-turbo replacement (this listing's layer) rather than actuator-only swaps because the X15 duty cycle makes the cartridge bearings more wear-sensitive than 6.7L ISB applications.

How long do VGT turbos last?

Factory-equipped HE400VG turbos on Cummins X15 medium-duty / heavy-duty applications routinely reach 400,000-600,000 miles before requiring rebuild, driven by the long-haul over-the-road duty cycle that keeps the VGT vanes sweeping cleanly. Class-8 applications running shorter duty cycles or frequent idle time accumulate carbon faster — those typically reach the 200,000-300,000 mile rebuild interval. Aftermarket replacements like this DOFOCH listing run shorter lifespans in proportion to the QC tier — entry-tier aftermarket units routinely hit 50,000-150,000 miles, rebuilder-tier units (KC Turbos, BD Diesel, Industrial Injection, ATS Diesel Performance) 150,000-300,000 miles.

Does Cummins own Holset turbo?

Cummins acquired Holset Engineering in 1973 and rebranded the subsidiary to Cummins Turbo Technologies (CTT) in 2006. The "Holset" name still appears on parts catalogs and OE stamps because the part-number heritage predates the rebrand. The HE400VG family in this DOFOCH aftermarket replacement listing covers Cummins-engineered Holset / CTT turbochargers across the 5459710 / 5358453 / 5358452 OE chain. DOFOCH is an aftermarket manufacturer, not an authorized Cummins / Holset distributor — buyers expecting OE-equivalent performance should run the four-point Holset authenticity protocol on the received unit.

What is the best turbo for a 6.7 Cummins?

The Cummins X15 is a different engine family than the 6.7L Cummins — different displacement, different chassis applications, different turbo frame size. For the 6.7L Cummins specifically (Ram pickup chassis 2007.5-2018), the documented segment-leader picks are KC Turbos premium HE351VE (2007.5-2012) or HE300VG (2013-2018), Fleece Performance Cheetah-VGT, and BD Diesel 6.7L stock replacement. This DOFOCH X15 listing serves a different audience — heavy-duty Class-8 fleet operators on the 15-liter engine — not the 6.7L pickup buyer.

How to verify the X15 turbo OE stamp before ordering?

Photograph the existing failed turbo's casting stamp before unbolting. The Cummins X15 HE400VG casting stamps typically read 5459710, 5459710RX, 5358001, 5358001RX, 5358454, 5458936, 5458936H, or 5458936HX in the 545XXXX or 535XXXX prefix families. Stamp-prefix match in any of the listed numbers confirms fitment for this DOFOCH listing. The buyer-side three-point verification (Turbo Model + Turbo Part Number + OEM Part Number) is the seller's explicit disclaimer — fitment is the buyer's responsibility before ordering.

Check Price on Amazon · or use our Turbo Replacement Cost Estimator to size the entry-tier X15 spend against the rebuilder-tier specialty alternatives.

Cluster B Closeout — and What Comes Next

This review closes the 9-SKU Cluster B build. Three signals would shift this DOFOCH X15 verdict: verified-buyer review pool ≥10 with average rating ≥4.0, documented third-party burst-test data beyond the listing's material claim, extended warranty term comparable to the rebuilder-tier 2-3 year coverage. Until those land, the segment's specialty-retailer alternatives (Industrial Injection, ATS Diesel Performance) carry better risk-adjusted spending profiles for downtime-sensitive Class-8 fleet operators.

Cluster B reviewed the full Cummins 6.7L diagnostic decision tree (actuator → cartridge → complete) plus the broader Cummins ISX / QSX / X15 medium-duty and heavy-duty Class-8 chain. The next cluster (Cluster C, Ford EcoBoost 2.0L) opens with the Weonefit Ford Edge / Explorer / Focus review — a different audience profile (Profile A: consumer pickup / crossover buyer with under-boost codes on Edge / Explorer / Focus), a different turbo family (BorgWarner K03, not Holset), and a different decision tree (the wastegate-integrated housing collapses the actuator-vs-cartridge-vs-complete split into a single complete-replacement path).
